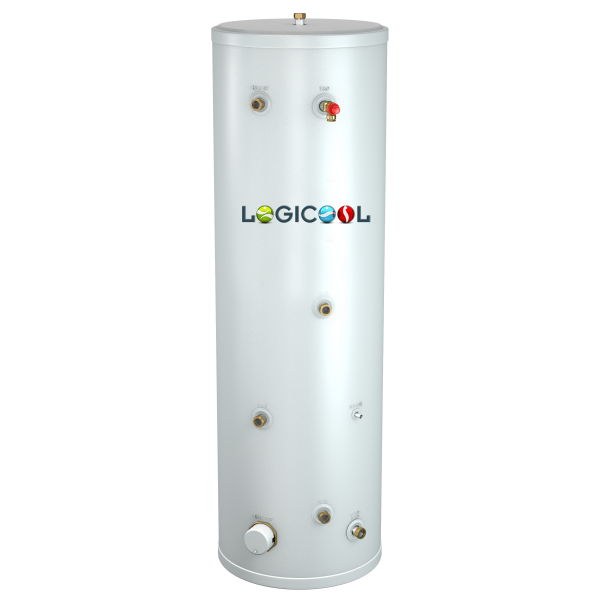

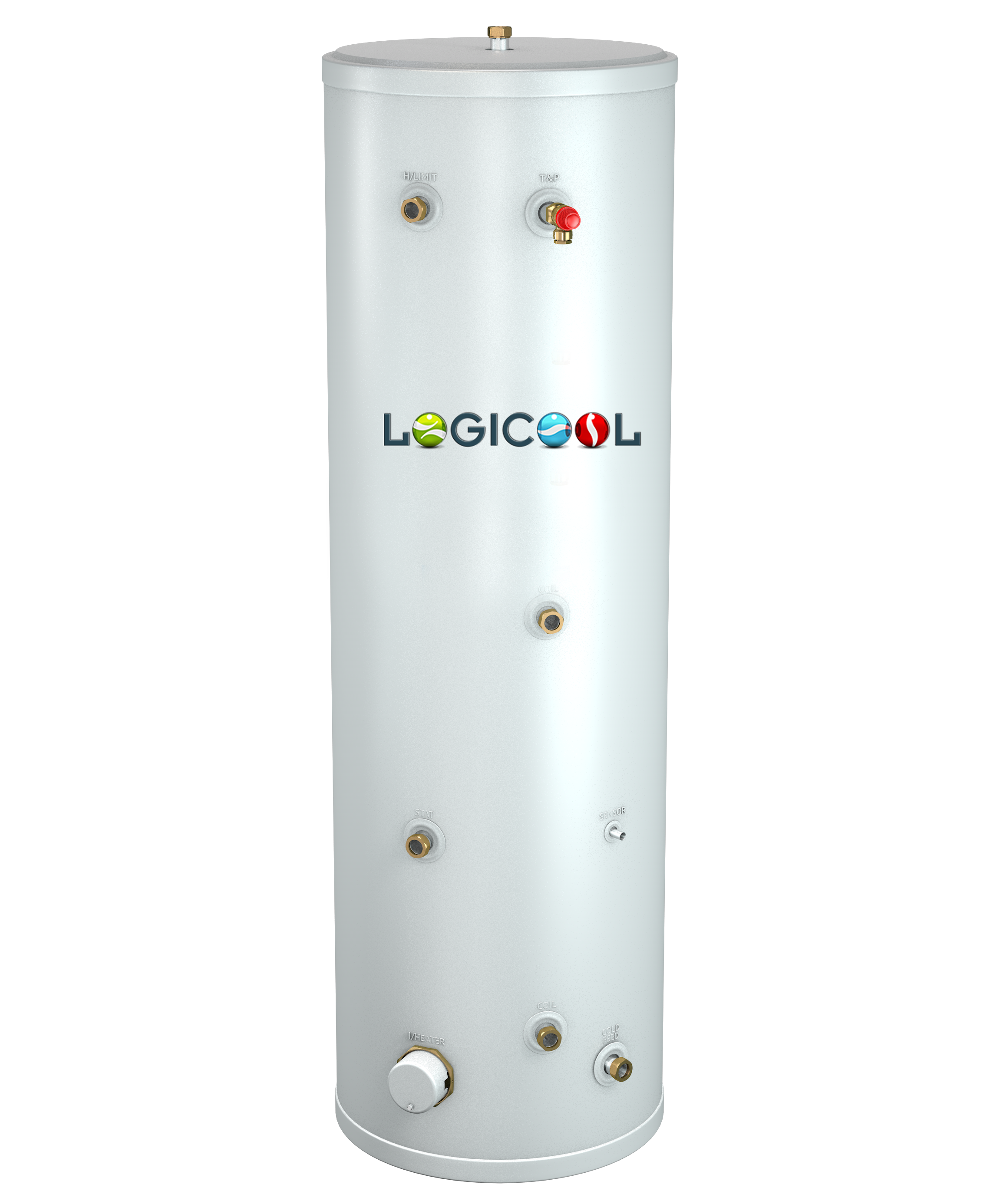

Logicool Standard Heat Pump Cylinders (EN12897)

All Air to Water Heat Pumps need to be complemented with the properly selected Heat Pump Cylinders. These cylinders are suitable for our Clivet, Hitachi, Ecodan and Panasonic products.

These cylinders provide a high flow rate capability and low pressure loss

Our Standard “Bare” Cylinder range is available from 120 to 600 litre Capacity.

Complete with 25 Year Warranty on Vessel Shell and two years on components.

Sales information

For price, please select a model below

Clear
SKU: Standard Heat Pump Cylinders Categories: , , , ,

Description

WH Model ReferenceLOGHPD3120LOGHPD3150LOGHPD3170LOGHPD3200LOGHPD3250LOGHPD3300LOGHPD3400LOGHPD3500LOGHPD3600
Cylinder TypeHeat Pump Bare Cylinder
Nominal Capacity(Litres)120150170200250300400500600
Integrated Buffer?.No
Height (Packaging)(mm)88810751203138917011924161319752139
Width (Packaging)(mm)545545545545545545690690690
Depth (Packaging)(mm)545545545545545545690690690


Weights (kg)		Empty145181202235289330453554635
Full26533137243553963085310541235
PackagedTBCTBCTBCTBCTBCTBCTBCTBCTBC

Unvented Expansion Vessel		Nominal Volume (l)121218181824353550
Voltage230 - 240 V
Cylinder Material #colspan#Stainless Steel
Cylinder Warranty(Years)25
Immersion Heater Duty(kW)3kW
Heating Surface Aream21.61m22.082.082.972.972.972.972.972.97
Insulation Type #colspan#Fully insulated 50mm Polyurethane
Insulation Thickness(mm)50
System Circulating PumpTypeN/A
Magnetic FilterTypeNot Included
Flow Setter ValveTypeNot Included
Standing Heat Loss(w)1.061.221.631.701.992.262.202.422.68
Standing Heat LosskWh/24h42446871839492101112
ERP Rating.BBCCCCCCC
GWP of Insulation.TBCTBCTBCTBCTBCTBCTBCTBCTBC
ODP of Insulation.0

Cylinders for Panasonic, Clivet and Hitachi Heat Pump design, application and installation. Come complete with G3 Kit

Features and Benefits

  • Universal Cylinder for Heat Pump Technology
  • G3 Kit
  • 28mm Compression Fittings as primary connections to the coil
  • Provides a high flow rate capability and low pressure loss
  • Built in the UK
  • 1 x 3kW Immersion Heater
  • 12mm Sensor pocket
  • 25 Year Manufacturing Warranty on Stainless Vessel
  • 24 Month Manufacturing Warranty on Components
  • 50mm Insulation (ERP Rated) B/C Rated
  • Full System Unvented Kits
  • WRAS Approved Product
  • ISO9001 Certified Quality Management





Additional information

Weight N/A
Dimensions N/A
Models

LOGHPD3120, LOGHPD3150, LOGHPD3170, LOGHPD3200, LOGHPD3250, LOGHPD3300, LOGHPD3400, LOGHPD3500, LOGHPD3600
