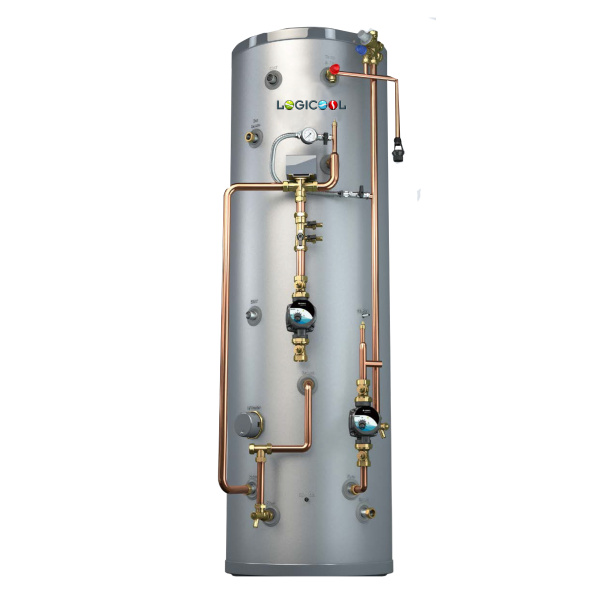

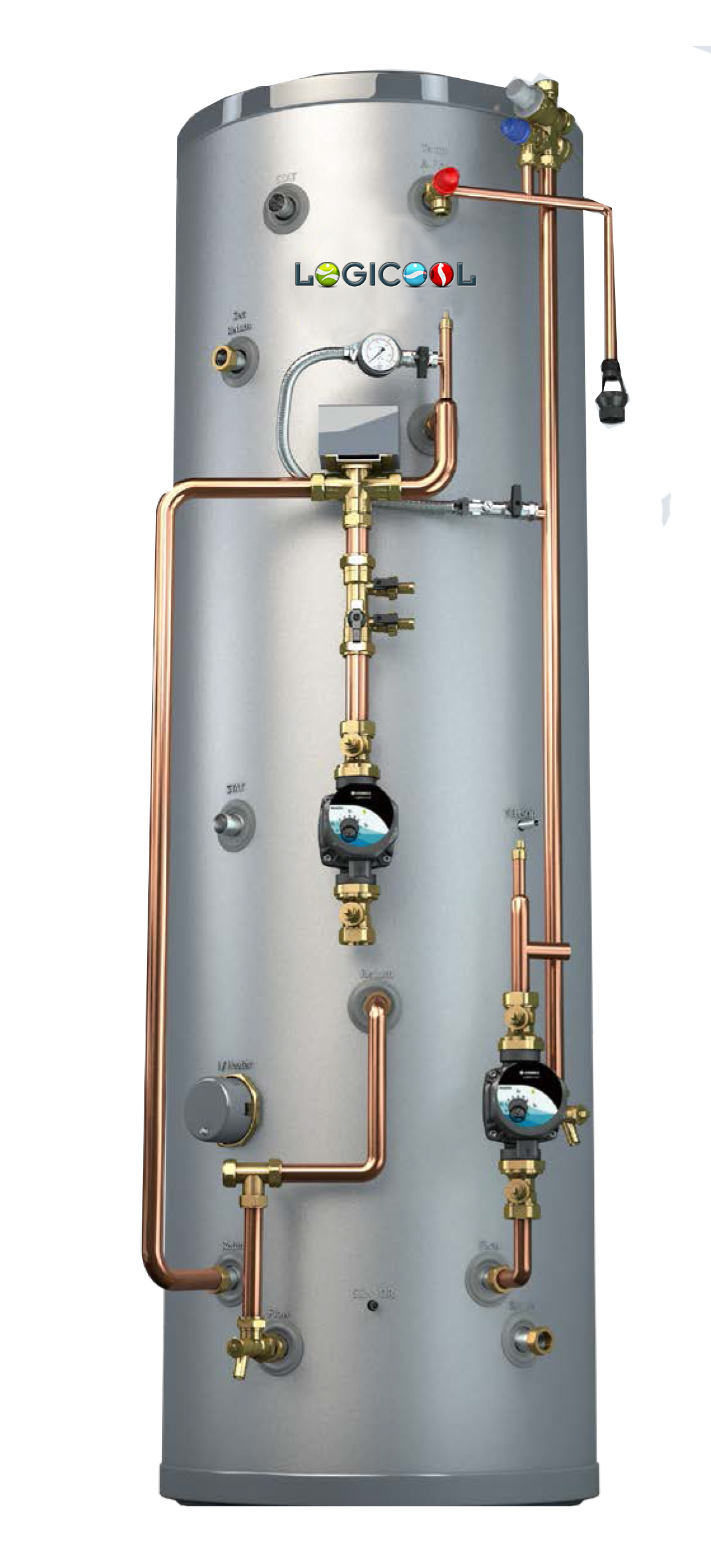

Logicool Pre-Plumbed inc. Buffer Standard & Slimline Heat Pump Cylinders (EN12897)

Logicool Pre-Plumbed inc. Buffer Standard & Slimline Heat Pump Cylinders (EN12897)

All Air to Water Heat Pumps need to be complemented with the properly selected Heat Pump Cylinders. These cylinders are suitable for our Clivet, Hitachi, Ecodan* and Panasonic products.

Cylinders range is from 120 to 170 (Slimline) and 170 to 225 (Standard) litre Capacity. All models are Pre-Plumbed for easier installation. All models featured include a Buffer (30 litre Slimline or 50 litre Standard) to allow for perfect combination with low flow, low temperature Underfloor Heating applications.

Can also be supplied with additional primary pump*.

Complete with 25 Year Warranty on Vessel Shell and two years on components.

*The additional Pump is a requirement when using Ecodan Heat Pumps with Third-Party Cylinders. Part Code UK068

Sales information

For price, please select a model below

Clear
SKU: Pre-Plumbed Heat Pump Cylinders Categories: , , , ,

Description

WH Model ReferenceLOGNPPB3012XLOGNPPB3015XLOGNPPB5017XLOGHPB5015XLOGPPB5018XLOGPPB5020XLOGPPB5022XLOGPPB5025XLOGPPB5030X
Cylinder TypeHeat Pump c/w 30l Buffer.Heat Pump c/w 50l Buffer.Heat Pump c/w 50l BufferHeat Pump c/w 60l Buffer
Nominal Capacity(Litres)120150170150180200225250300
Integrated Buffer?.Yes (30L)Yes (30L)Yes (30L)Yes (50L)
Height (mm)164519152095154016751850201119192011
Width (mm)475545580
Depth (mm)475545


Weights (kg)		Empty525558566165697782
Full196229270259284310344385427

Unvented Expansion Vessel		Nominal Volume (l)121218121218182424
Heating Expansion Robokit Supplied lose (l)12
ElectricalVoltage230 - 240 V
Cylinder Material ShellStainless Steel
Cylinder Shell Warranty(Years)25
Immersion Heater Duty(kW)3kW
Heating Surface Aream21.61m21.61m22.08m22.082.082.972.972.972.97
Insulation TypeMaterialFully insulated 50mm Polyurethane
Insulation Thickness(mm)50
System Circulating PumpType Lowara 6.5m head
Primary PumpOptional Extra if requiredUK068
Central Heating Control.by heat pump controller
Hot Water Control.by heat pump controller
Magnetic FilterTypeNot IncludedNot Included
Flow Setter ValveTypeIncludedIncluded
Standing Heat Loss(w)525968446165717586
Standing Heat LosskWh/24h1.251.421.631.221.471.551.71.852.13
ERP Rating.BBCBCCCCC
GWP of Insulation.TBCTBCTBCTBCTBCTBCTBCTBCTBC
ODP of Insulation.0

Cylinders for Panasonic and Hitachi Heat Pump design, application and installation. Come complete with G3 Kit and integrated Buffer.

Features and Benefits

  • Universal Cylinder Pre-plumbed for Heat Pump Technology
  • Includes Flow Setter Valve
  • Cold Water Inlet Set
  • G3 Kit
  • 4 Bar Pressure Gauge
  • Fill & Flush Valve with servicing ports. Usefull to fill and flush the system with cleaning chemicals or water treatment.
  • Includes Three Way Valve
  • High Temperature Limit Stat

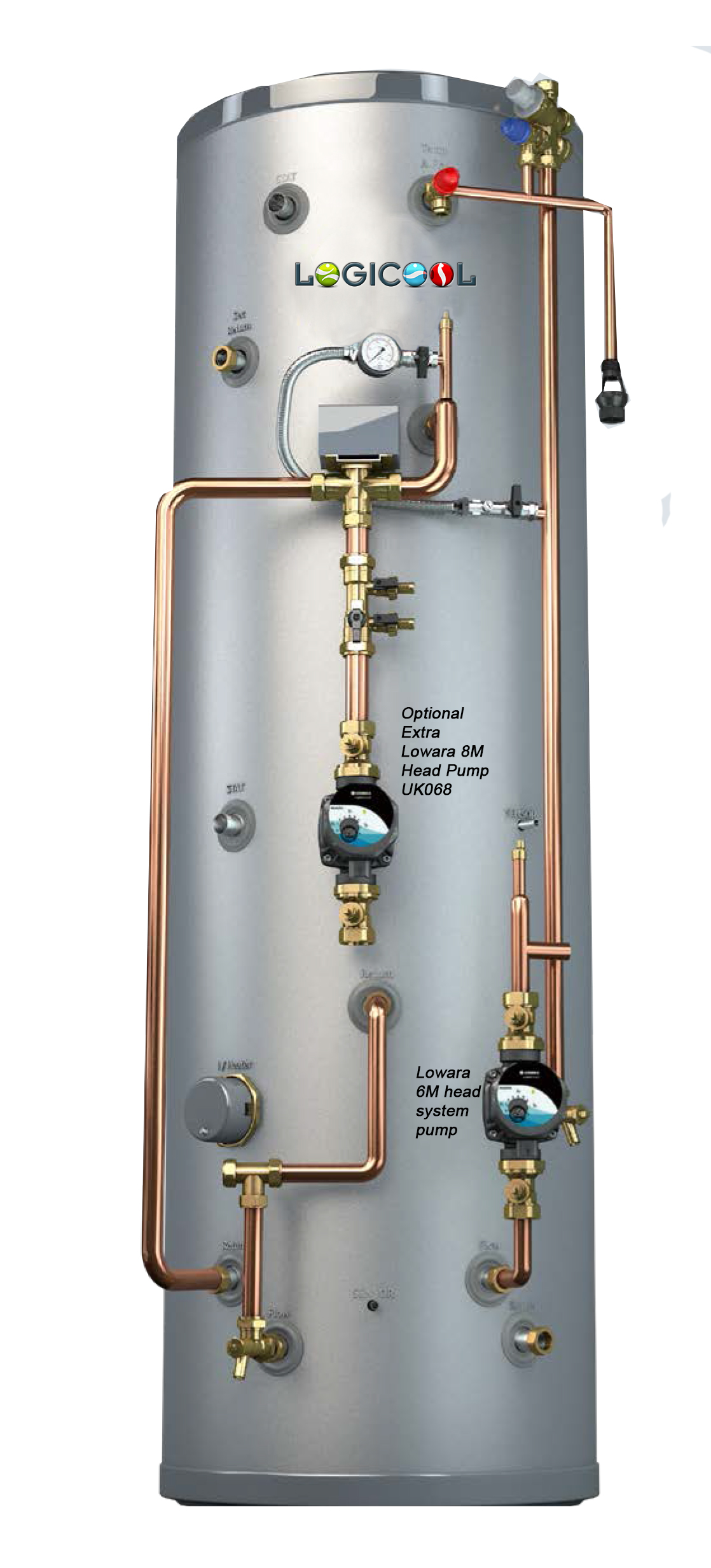

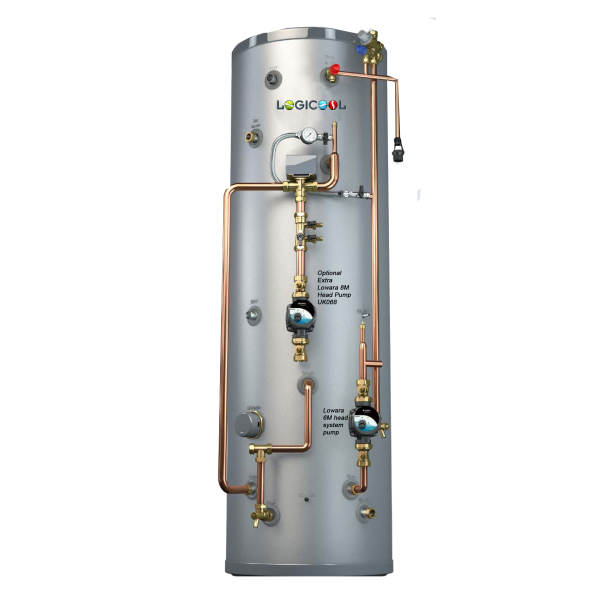

  • Lowara Pump with 6m Head Included
  • Optional 8m circulating pump for primary circuit
  • Built in the UK
  • Optional Integrated Buffer Vessel (provides hydraulic separation and minimum system volume)
  • Slimline Option available
  • Saves Installation Time
  • Prevents Installation Faults
  • 1 x 3kW Immersion Heater
  • 12mm Sensor pockets (cylinder)
  • 25 Year Manufacturing Warranty on Stainless Vessel
  • 24 Month Manufacturing Warranty on Components
  • 50mm Insulation (ERP Rated) B/C Rated
  • Full System Unvented Kits
  • WRAS Approved Product
  • ISO9001 Certified Quality Management





Additional information

Weight N/A
Dimensions N/A
Models

LOGNPPB3012X, LOGNPPB3015X, LOGNPPB5017X, LOGHPB5015X, LOGHPB5018X, LOGPPB5020X, LOGPPB5022X, LOGPPB5025X, LOGPPB5030X
Manufacturer

Hitachi, Panasonic
