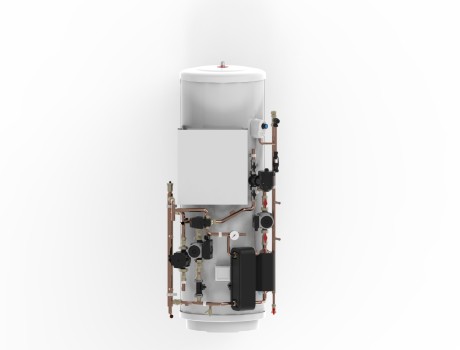

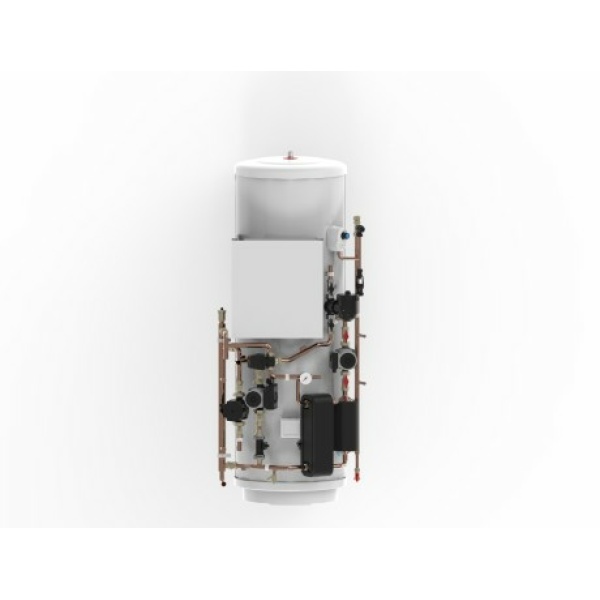

Name: Ecodan FTC 7 Standard Cylinders R32 &amp; R290
Brand: Mitsubishi
SKU: 3160
Availability: InStock

Ecodan FTC 7 Standard Cylinders R32 & R290

For price, please select a model below

Standard Pre-Plumbed

Clear

Quantity:

Description

Key Features

Key Benefits

Technical Data

Cylinder Technical Data	Model Number
Cylinder Technical Data	EHPT15X-UKHEWS	EHPT17X-UKHEWS	EHPT21X-UKHEWS	EHPT21X-UKHEWL	EHPT25X-UKHEWL	EHPT30X-UKHEWL
NOMINAL HOT WATER VOLUME (LITRES)	115	170	210	210	250	300
Heat Loss ) kWh/24hrs	1.15	1.23	1.53	1.53	1.8	2.09
WATER
ERp RATING	B	B	C	C	C	C
Flow Rate (l/min) R32 5/6/8.5/11.2/14	14/17/24/-/-	14/17/24/-/-	14/17/24/-/-	-/17/24/32/40	-/17/24/32/40	-/-7/24/32/40
Flow Rate (l/min) R290 5/6/8	14/17/23	14/17/23	14/17/23	-/17/23	-/17/23	-/17/23
Primary Circuit Pump	Grundfos UPM4L 25-75 130AZA
Heating Circuit Pump	Grundfos UPM3 AUTO 25-70 130
Sanitary Hot Water Pump	Grundfos UPSO 15-60 CIL2
Connection Size (mm) Heating / DHW	22 /22	22 / 22	22 / 22	28 / 22	28 / 22	28 / 22
Heat Loss (kWh/24hr)	1.72	2.08	1.79		2.02	2.24
Water Safety
Water Circuit Control Thermistor (°C)	80
DHWC Control Thermistor (°C)	75
DHWC Over Temperature Cut-Out (°C)	80 +/- 5
DHWC Temp and Pressure Relief Valve (°C) / (MPa (Bar))	90°C / 7 Bar
DHWC Expansion Relief Valve (Cold) (MPa (Bar))	10
DHWC Expansion Vessel (Litres)	12	18	18	18	24	24
Insulation Type	CFC / HCFC-free Polyurethane
Insulation Thickness	60mm
DIMENSIONS (mm)
Width	730	730	730	748	748	748
Depth	756	756	756	755	755	755
Height	1131	1257	1509	1509	1761	2075
WEIGHT EMPTY / FULL (kg)	55 / 205	58 / 228	64 / 274	68 / 278	74 / 324	82 / 382
Phase	Single
Capacity (kW)	3	3	3	3	3	3
Max Running Current (A)	13	13	13	13	13	13
Fuse Rating - MCB Sizes (A)	16	16	16	16	16	16

Additional information

Standard Pre-Plumbed	EHPT15X-UKHEWS, EHPT17X-UKHEWS, EHPT21X-UKHEWS, EHPT21X-UKHEWL, EHPT25X-UKHEWL, EHPT30X-UKHEWL
