Description
The multiple unit system has the ability to cascade available units to both on and off mode to meet the load from a building. As an example of this unique
modulation, a 16 unit system allows 0.5kW increments of capacity, from 7.8kW all the way up to 640kW*.

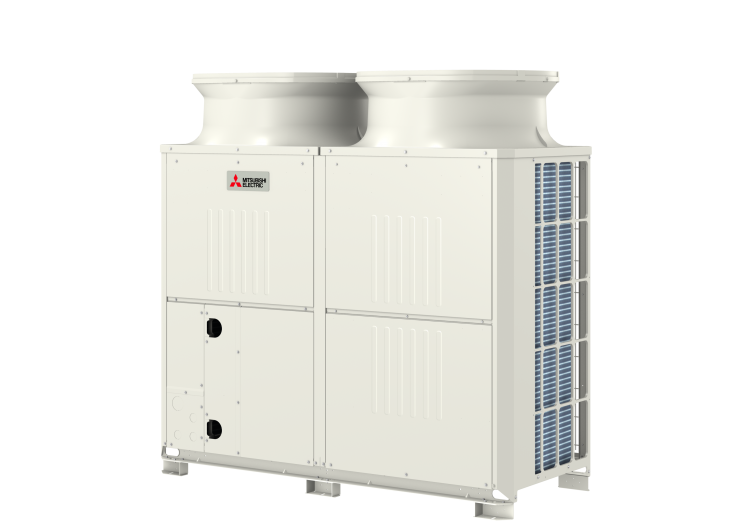

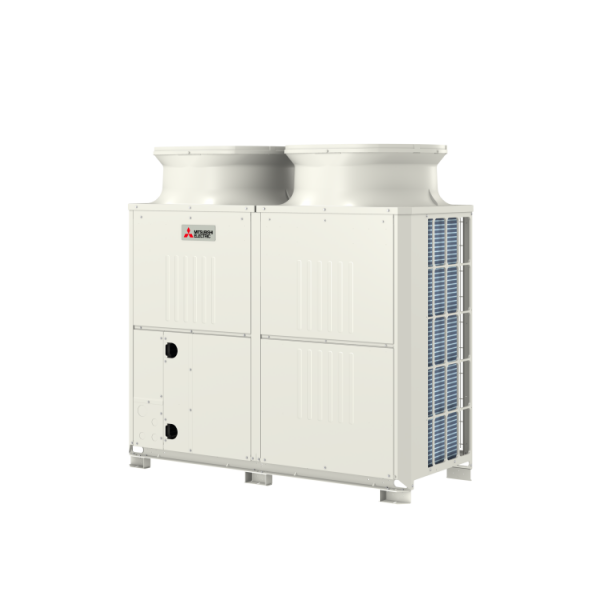

With cascade and rotation built in as standard, the Ecodan CAHV system is perfectly suited to commercial applications including schools and hospitals.
| Model Reference | Capacity kW | Outlet water temp range (oC) | Outdoor temperature (oC) | Dimensions | Fuse MCB Sizes | Sound Pressure (dBA) | Electrical Supply |
||
| Outdoor Unit | Width | Depth | Height | ||||||
| QAHV-N560YA-HPB | 40 | 24 - 70 | -25 ~ 43 | 1750 | 586 | 1770 (with legs) | TBC | 64 | Three |
Features and Benefits
- Low GWP R454C refrigerant and reduced embodied carbon helps achieve CSR targets
- Achieves 70ºC outlet temperature down to -20ºC ambient temperature for continuous heating provision
- Multiple unit cascade control from 7.8kW to 640kW capacity provides design flexibility for a wide range of commercial applications
- Water flow temperatures from 24ºC to 70°C without boost heaters results in cost and energy savings
- Advanced heat exchange design combined with the properties of R454C refrigerant enables a shorter defrost time
- Low frequency compressor control improves energy efficiency and product operation
- Ability to rotate units based on accumulated run hours offers extended product life
Requires only water and electrical connections, for ease of installation
