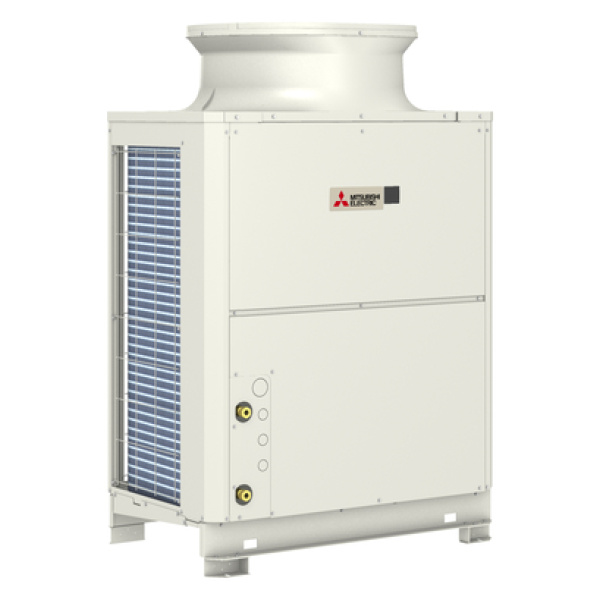

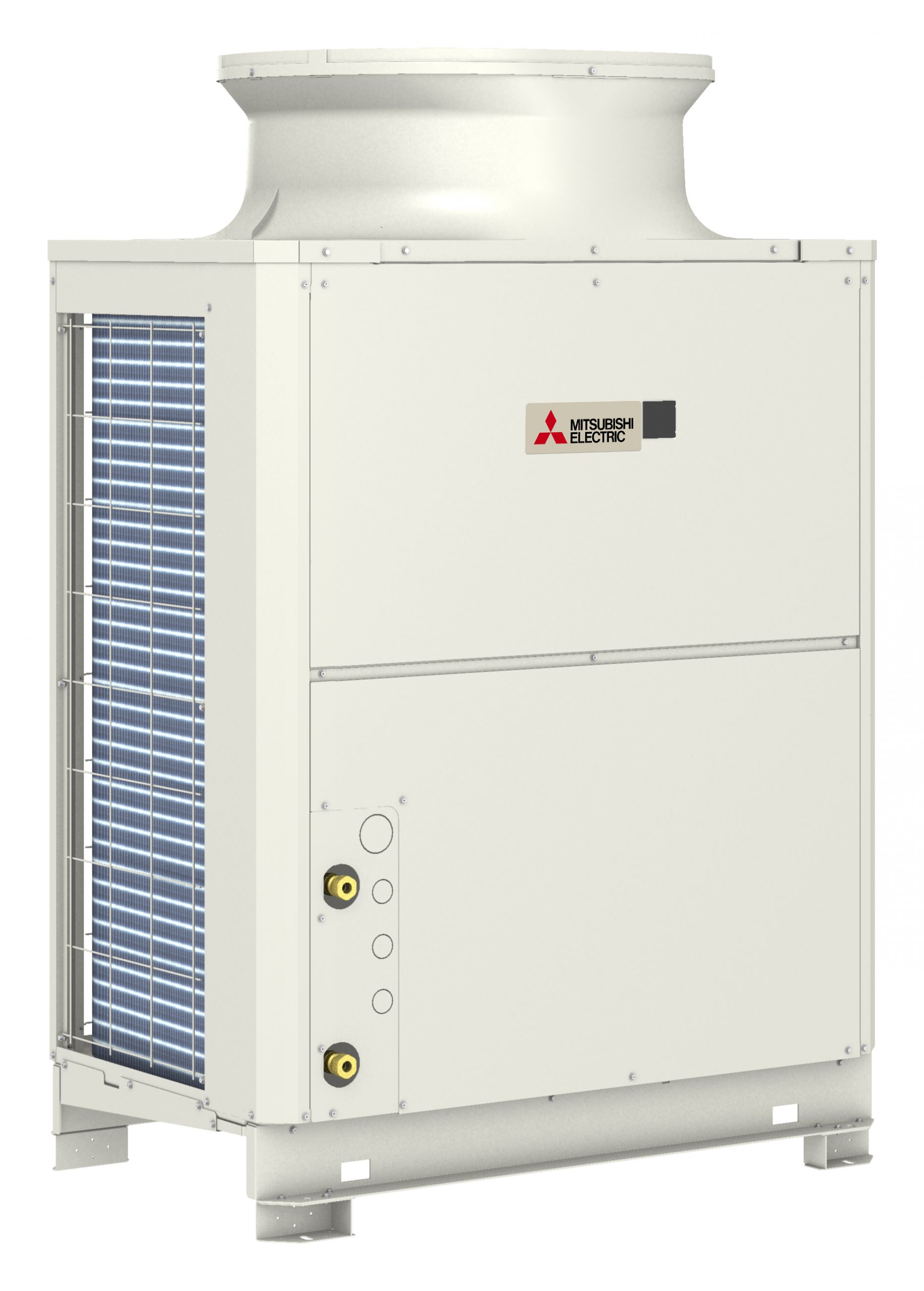

Ecodan CO2 QAHV-N560YA-HPB

QAHV-N560YA-HPB
Ecodan Air Source Heat Pump

Specifically designed for commercial sanitary hot
water application, where gas boilers, combined heat
and power systems (CHP) or electric water heating
have been traditionally utilised, the QAHV provides
a low carbon solution for hospitals, hotels, leisure
centres and student accommodation.
Utilising the natural and stable refrigerant CO2 (R744), the environmentally
clean solution enables compliance to strict local planning laws and boosts
BREEAM points. Compounded by the increasing decarbonisation of the
electrical grid and the UK’s commitment to Net Zero 2050, the QAHV
provides a high efficiency, low carbon hot water delivery solution with
leaving water temperature up to 90°C.



Sales information Technical bulletin Installation manual Service Manuals Product video

Please contact Easy Heat Pumps for further pricing information. Due to the complexity of these systems these selections must be approved before supply. Contact 01283 218277 or sales@easyheatpumps.com

Categories: ,

Description

Model ReferenceInlet water
temp range (oC)		Outlet water
temp range (oC)		Outdoor
temperature (oC)		DimensionsFuse
MCB Sizes
Sound
Pressure (dBA)
Electrical
Supply
Outdoor UnitWidthDepthHeight
QAHV-N560YA-HPB5 - 6355-90-25 ~ 43 12207601837 (with legs)4056Three



Features and Benefits

  • High efficiency at high flow temperatures
  • Utilises CO2 refrigerant which has a GWP of 1
  • Uses a unique twisted and spiral gas cooler to enhance energy efficiency
  • Full heating capacity down to -3°C outdoor temperature and operates down to -25°C
  • Super low noise levels
  • Able to utilise with an indirect system
