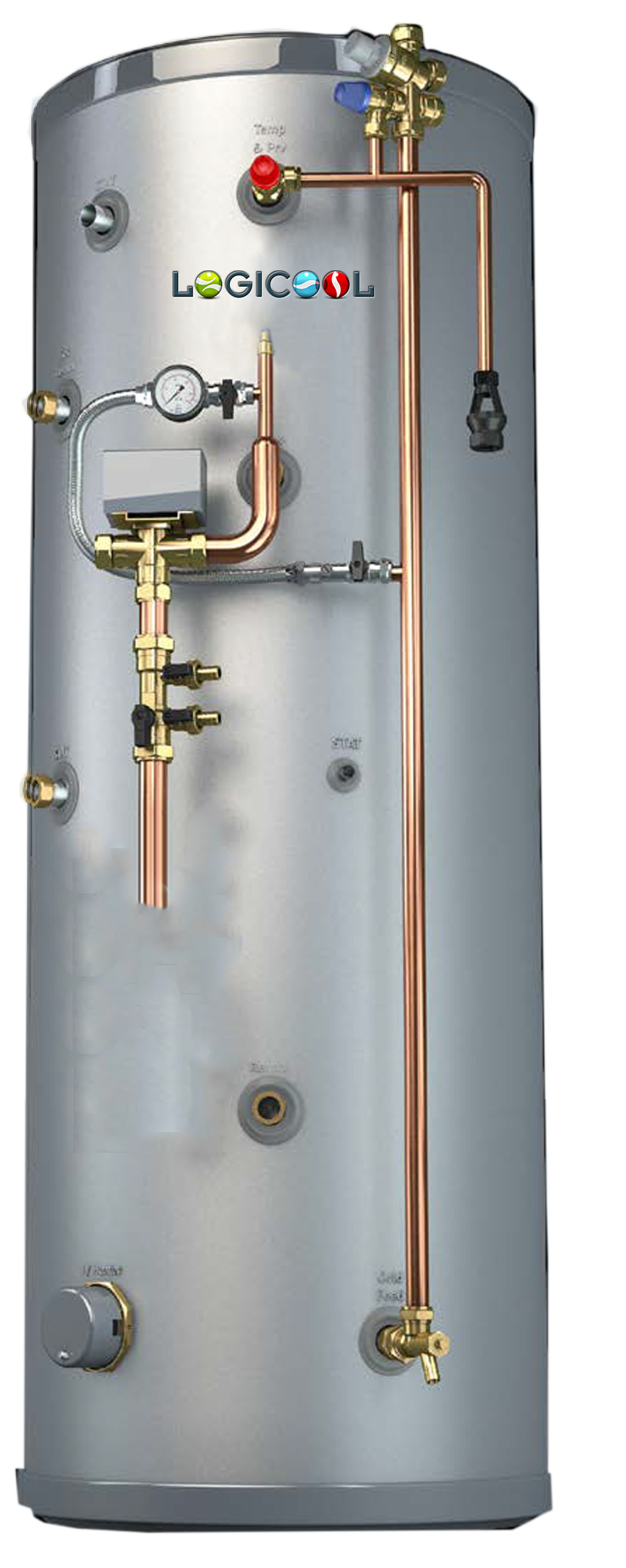

Logicool Pre-Plumbed Standard Cylinders

All Air to Water Heat Pumps need to be complemented with the properly selected Heat Pump Cylinders. These cylinders are suitable for use with any manufacturers heat pump. If the heat pump does not have an internal circulating pump such as the Ecodan* see note below.

Our Standard Pre-Plumbed Cylinder range is from 150 to 600 litres capacity.

All models are Pre-Plumbed for easier installation.

*The additional Pump is a requirement when using *Ecodan or similar Heat Pumps, Part Code UKX068 + (K460306 x 2)

Complete with 25 Year Warranty on Vessel Shell and two years on components.

For price, please select a model below

Clear
SKU: N/A Categories: , Tags: , , , , , , , Brand:

Description

Cylinders for use with any  Heat Pump design, application and installation. Come complete with G3 Kit and integrated Buffer.

Features and Benefits

  • Cylinder Pre-plumbed for Heat Pump Technology to fit into standard spaces
  • Cold Water Inlet Set
  • G3 compliant cold feed pipework, inc. Tundish, drain point, filling loop and 3 Bar inlet control set
  • 4 Bar Pressure Gauge
  • Fill & Flush Valve with servicing ports. Useful to fill and flush the system with cleaning chemicals or water treatment.
  • Includes Three Way Valve (3 Port full boare, 28mm compression DHW & CH Valve)
  • T&P insulation cover and potable expansion vessel included
  • High Temperature Limit Stat
  • Lowara Pump with 6m Head Included
  • Optional 8m circulating pump for primary circuit
  • Built in the UK
  • Saves Installation Time
  • Prevents Installation Faults
  • 1 x 3kW Immersion Heater factory fitted for emergency back up. This can be linked to a Heat Pump for an Anti-Legionella Cycle where required.
  • 12mm Sensor pockets (cylinder)
  • 25 Year Manufacturing Warranty on Stainless Vessel
  • 24 Month Manufacturing Warranty on Components
  • 50mm Insulation (ERP Rated) B/C Rated
  • Full System Unvented Kits
  • WRAS Approved Product
  • ISO9001 Certified Quality Management
  • One additional immersion heater boss can be added
  • Upgrade from 3kW to 6kW Immersion Heaters available





Additional information

Standard Cylinder

LOGHPP2150, LOGHPP2150X, LOGHPP2180, LOGHPP2180X, LOGHPP3200, LOGHPP3200X, LOGHPP3250, LOGHPP3250X, LOGHPP3300, LOGHPP3300X, LOGHPP4400, LOGHPP4400X, LOGHPP4500, LOGHPP4500X, LOGHPP4600, LOGHPP4600X, UK068
