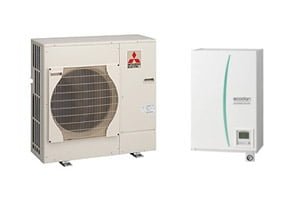

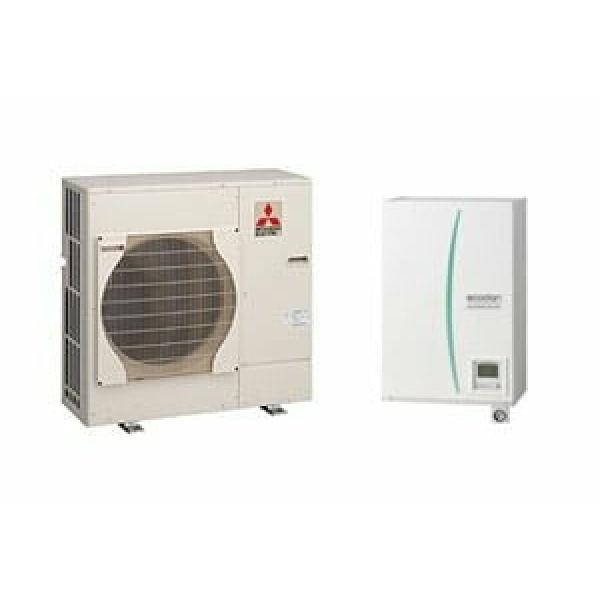

Complete Ecodan Packages c/w Mitsubishi DX HydroBox

The Mitsubishi Electric range of Ecodan split air source heat pumps includes 5, 7.5
and 12kW sizes. Now with the ability to cascade up to six units of the same output Ecodan split systems offer a capacity range from 5 to 72kW. Designed to suit a wide number of applications, these models offer a viable solution for the varying requirements that domestic and small commercial applications demand.

Please contact Easy Heat Pumps for further pricing information. Due to the complexity of these systems these selections must be approved before supply. Contact 01283 218277 or sales@easyheatpumps.com

Description

Model ReferenceRated Heating Output (Kw)System COP
Electric
Heater
Cap.
(kW)

Fuse
Rating
(Amps)

Electrical
Supply
Outdoor Unit ModelHot Water CylinderA-7/W35
-7°C
A-2/W35
2°C
A-7/W35
7°C
A-7/W35
-7°C
A-2/W35
2°C
A-7/W35
7°C
PUHZ-SW40VHAEHSC-VM2C3.493.043.912.853.584.82N/A16Single
PUHZ-SW75VHAEHSC-VM2C6.165.115.642.953.604.72N/A25Single
PUHZ-SW125VHAEHSC-VM2C8.117.819.242.923.674.65N/A40Single

Packaged HydroBox system inclusive of the following:
• Water Based Hydrobox (unvented Expansion Vessel)
• ecodan Condensing Unit
• PAR-W40MAA Intelligent Controller (inclusive of thermistor, 7 day programmable timer and thermostat control)
• Flow Temperature Controller (new FTC5)
• PAC-SH30RJ-E Refrigeration Connections (Size 40 model only)
• PAC-SH50RJ-E Refrigeration Connections (Size 40 model only)
• 12 Litre Unvented Store Expansion Vessel
• Expansion Vessel Hoses
• Control Relief Valve
• Flow Setter Valve (FM)
• TF1 Magnetic Filter
• 1 x Pump
• 2kW Inline Boost Heater
• PAC-TH011TK-E Hot Water Thermistor

Feature and Benefits

  • Split unit allowing water connections to be made internally
  • No need for gas supply, flues or ventilation
  • Single phase power supply with a low starting current
  • Low maintenance and quiet operation
  • Operates with outside temperatures as low as -20ºC
  • Multiple unit connection
  • Hybrid function for use with conventional boilers
  • 2-zone energy efficient space heating control
  • Energy monitoring as standard
  • Coastal protection models available (-BS)
