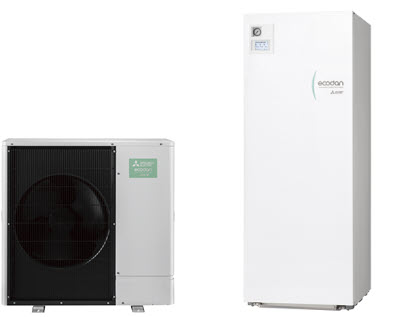

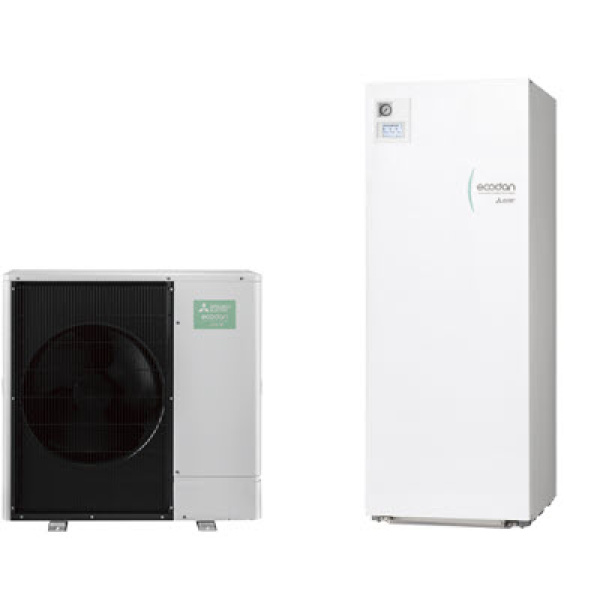

R290 Ecodan EHPT20X-MEHEW Heat Pump & Cylinder Package

The packaged cylinder offers a highly adaptable heating solution for retrofit or new build.
Designed specifically by Mitsubishi Electric to integrate with the Ecodan R290 range of energy efficient and environmentally friendly monobloc air source heat pump range.

The cylinder provides improved performance and faster heat up times through the use of plate heat exchanger technology.

Fast commissioning via an SD card and energy monitoring functions are now included.

For price, please select a model below

Clear
SKU: R290 Ecodan EHPT20X-MEHEW Heat Pump & Cylinder Package Category:

Description

Model Reference
Cylinder Capacity
(Litres)

Rated Heat Output in kW (and relative COP)

Min
Water
Vol (L/min)

Fuse
Rating
(Amps)
Outdoor Unit CodeHot Water
Cylinder
A-7/W35A2/W35A2/W45A2/W65
PUZ-WZ50VHA(-BS)EHPT20X-MEHEW2005.20 (2.68)5.80 (2.95)5.50 (2.35)4.30 (1.69)6.516 (1Ph)
PUZ-WZ60VHA(-BS)EHPT20X-MEHEW2006.20 (2.47)6.80 (2.92)6.00 (2.34)5.00 (1.68)6.516 (1Ph)
PUZ-WZ80VHA(-BS)EHPT20X-MEHEW2008.20 (2.28)8.80 (2.77)8.70 (2.27)6.60 (1.57)6.525 (1Ph)

Features and Benefits

  • A+ hot water efficiency
  • Stylish and modern aesthetics
  • Packaged hot water, heating and controls
  • Colour touch screen control
  • MELCLoud enabled
  • Minimised energy consumption
  • Plug and play simple installation
  • Intutive user friendly operation
  • Remote control, monitoring, maintenance and technical support

Packaged HydroBox system inclusive of the following:

  • Pre-Plumbed Mitsubishi HWC (EHPT20X-MEHEW)
  • G3 Compliance Kit
  • ecodan Condensing Unit (only compatible with R290 models)
  • Built-In Controller (inclusive of thermistor, 7 day programmable timer and thermostat control)
  • Flow Temperature Controller (new FTC7)
  • Flexible Hose Connectors (FCP)
  • 18 Litre Unvented Store Expansion Vessel
  • MAC-587IE Melcloud WiFi Interface with 2m Cable
  • ACC-FI-HP22/28 Magnetic Filter
  • Internal Pumps for Space Heating and Hot Water
  • Built-In 3kW Immersion Heater
  • Rubber Mounting Feet (SF4060/SF4023 x 2)
  • Drain Kit (PAC-SG61DS)





Additional information

Model

PUZ-WZ50VAA System, PUZ-WZ60VAA System, PUZ-WZ80VAA System
