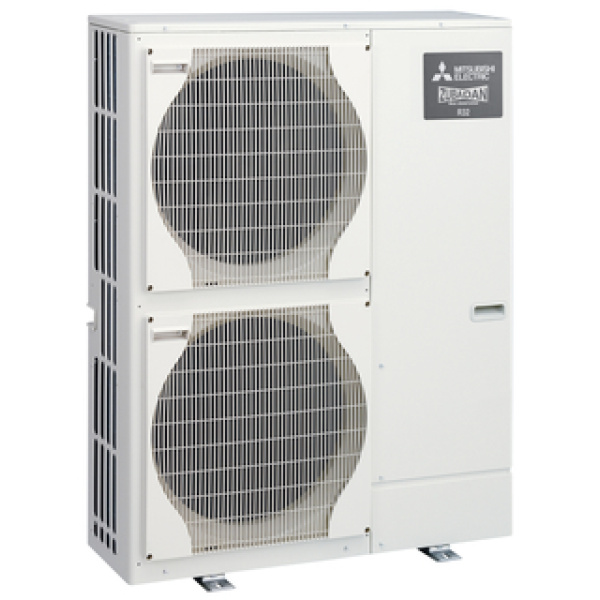

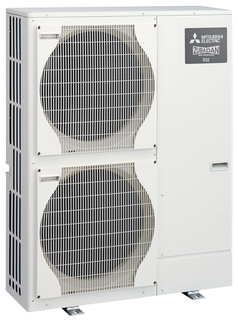

Mitsubishi Electric 14kW - R32 Zubadan Model

Mitsubishi Electric 14kW – R32 Zubadan Model

Our range of Zubadan chassis Ecodan monobloc air source heat pumps are suitable for properties with
large space heating requirements and are available in single or three phase 14kW sizes.
With its advanced flash injection technology, this product provides a solution to low ambient capacity issues common to
standard systems and is a viable solution for all types of domestic requirements that the UK housing market demands.



Sales information Sales information 2 Technical bulletin Installation manual OU Dimensions Easy Heat Pumps Installation Kit Product video

For price, please select a model below

Clear
SKU: 14kW – R32 Zubadan Model Categories: ,

Description

Model ReferenceRated Heat Output (kW)
Min- Max
Flow Rate
l/min)
Min System
Water Vol
(Litres)
Electric
Heater
Cap (kW)
Fuse
(Amps)
ENAI
Status
Heat Pump
Reg No.
Outdoor UnitA-7/W35A2/W35A7/W35
PUZ-HWM140VHA(-BS)15.9016.2016.4017.90 - 40.10TBCN/A40 (1Ph)N/A (greater than 12kW)
PUZ-HWM140YHA(-BS)15.9016.2016.4017.90 - 40.10TBCN/A16 (3Ph)N/A (greater than 12kW)

Features and Benefits

  • Self-contained unit, only requiring water and electric connections
  • No need for gas supply, flues or ventilation
  • Low maintenance and quiet operation
  • Operates with outside temperatures as low as -28ºC
  • Optimised low ambient defrost control and operation down to -15°C
  • Hybrid function, for use with conventional boilers
  • Energy monitoring as standard
  • Multiple unit cascade function
  • Coastal protection models available (-BS)

Application Examples

  • The vast majority of UK homes
  • Small Retail Outlets
  • Dental / Doctor’s Surgeries
  • Public Sector / Commercial Buildings

Additional information

Weight N/A
Dimensions N/A
Model

PUZ-HWM140VHA, PUZ-HWM140YHA
Rated Heat Output at 2°C (kW)

Up to 16kW
Rated Heat Output at -2°C (kW)

Up to 16kW
