Ideal Logic Air R32

Ideal Logic Air R32

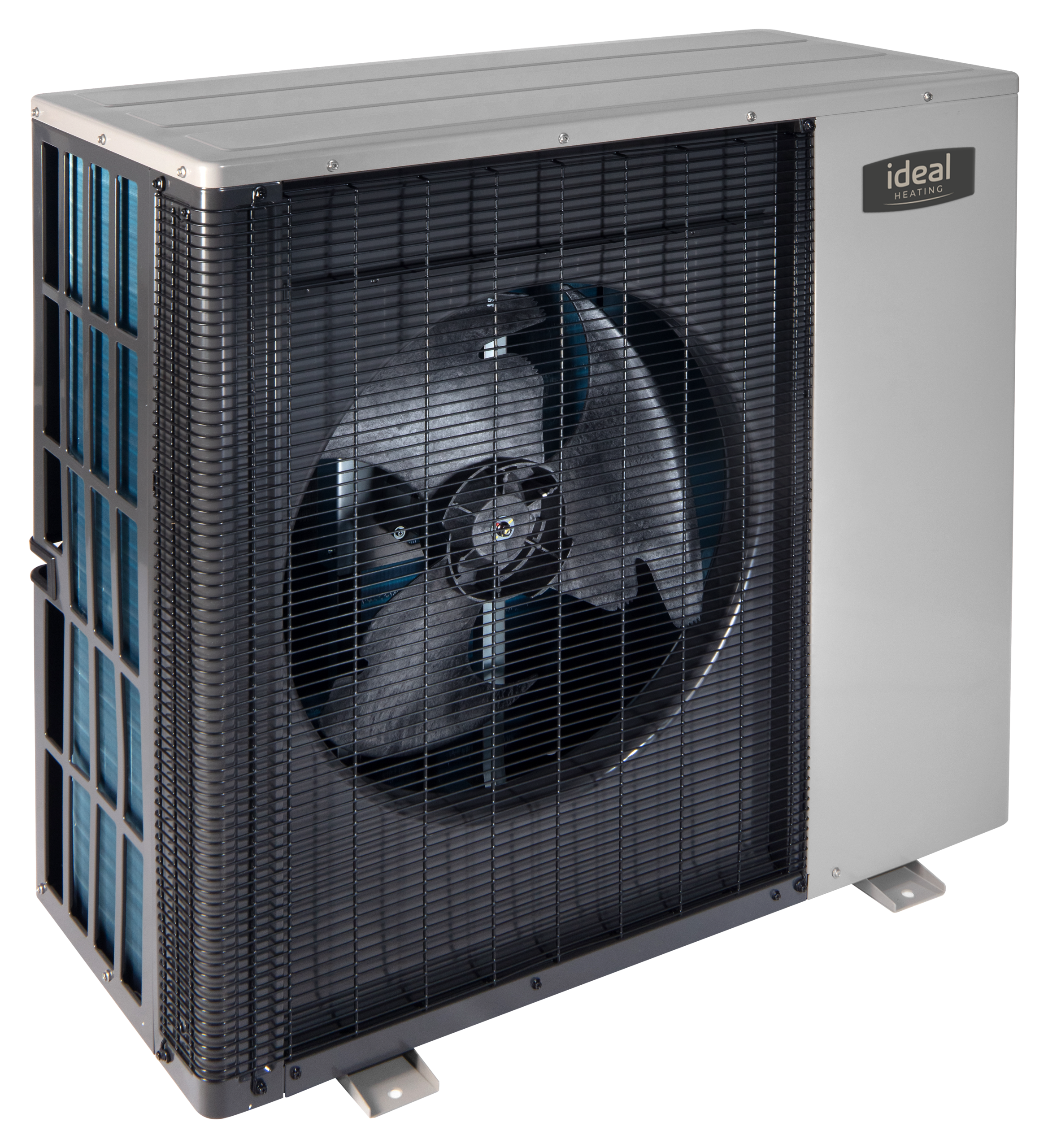

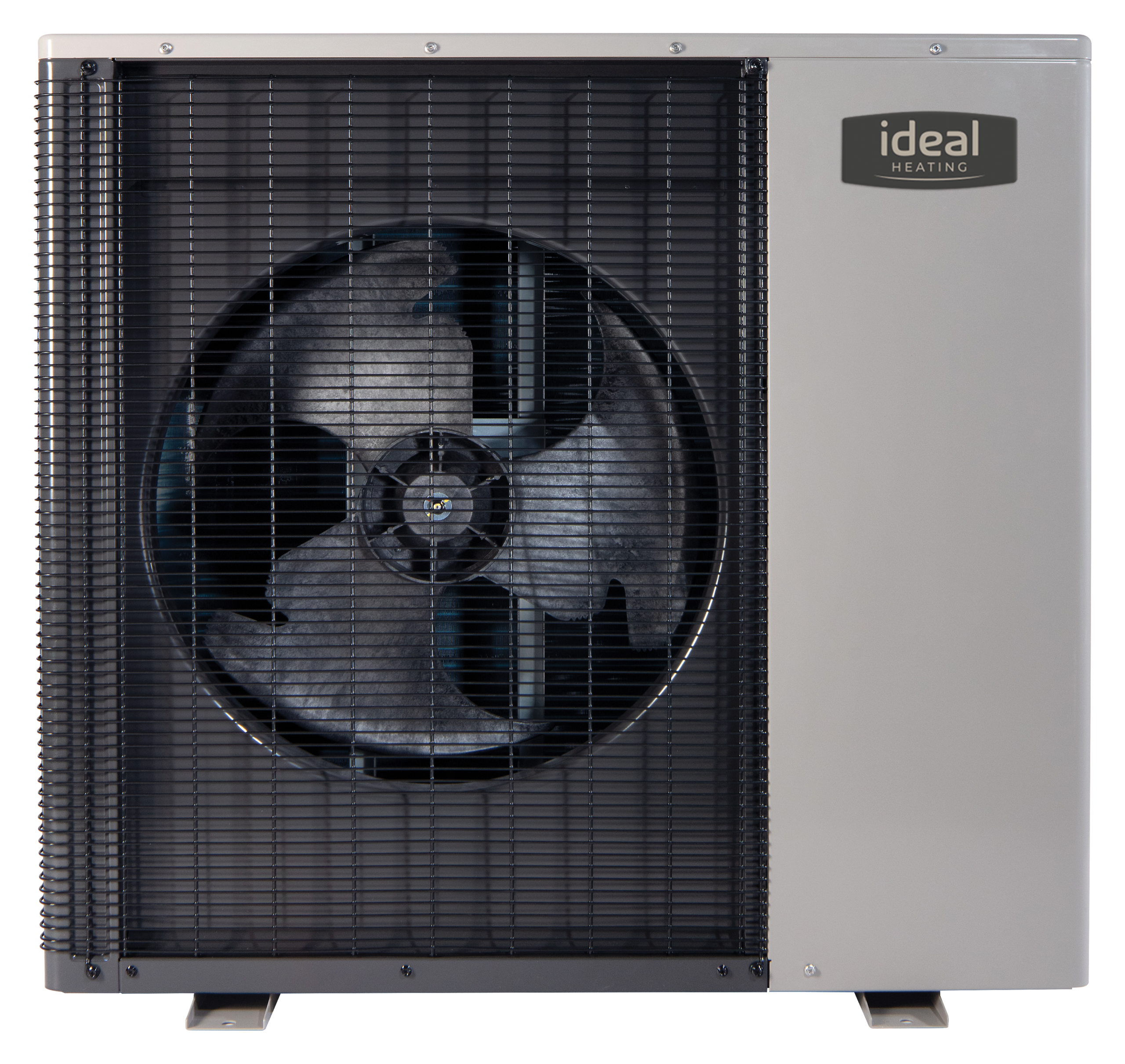

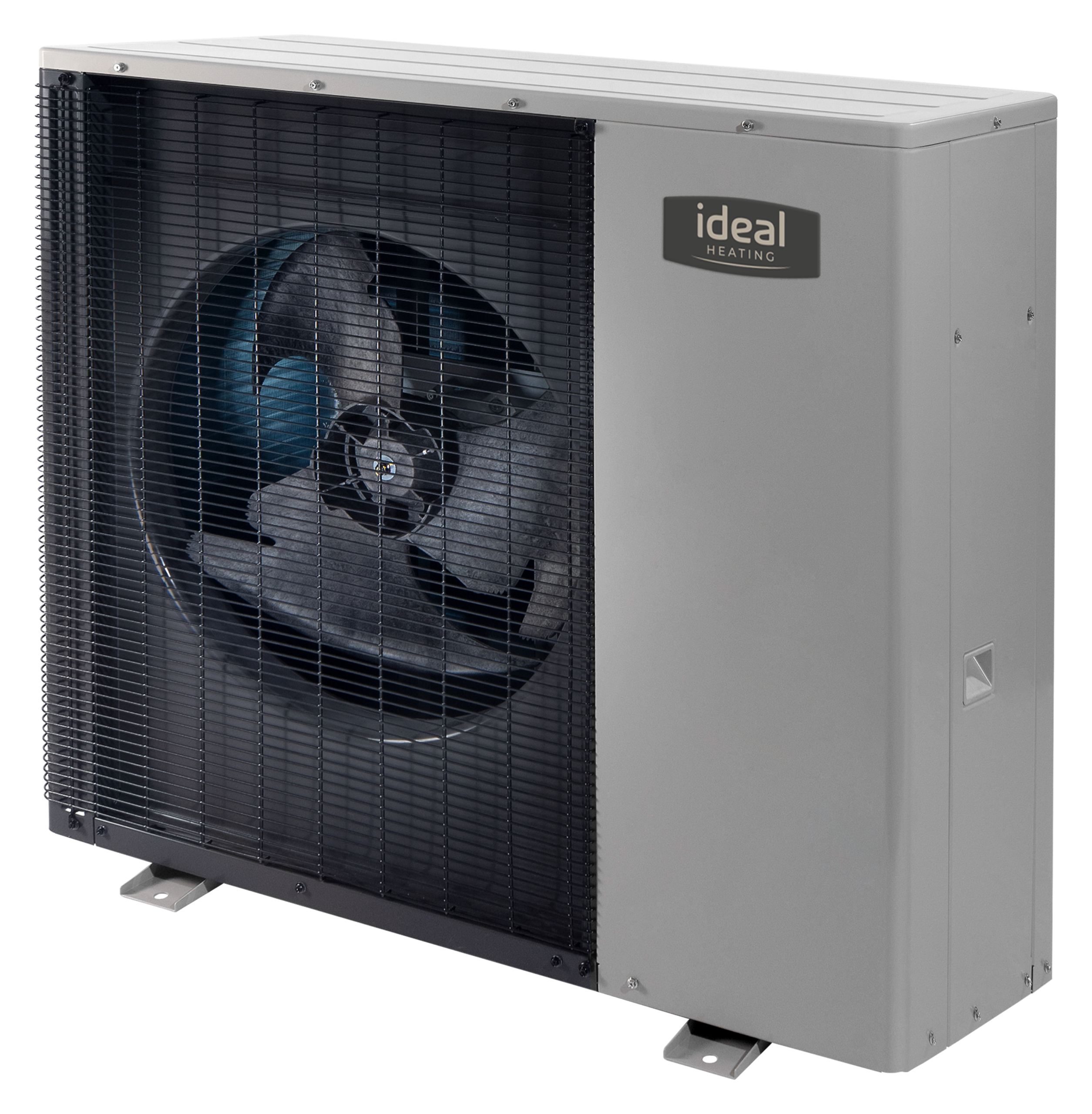

The Logic Air monobloc heat pump range provides great efficiencies both in heating and hot water. The Logic Air is designed to deliver efficient, simple and reliable low-carbon heating in homes throughout the UK – (*Note a Control Box is compulsory to operate a Logic Air Ideal Code 235797) Ideal Logic – Controls – Easy Heat Pumps

  • Features Highly efficient: SCOP up to 5.19*
  • Low carbon R32 refrigerant
  • Compatibility: radiator and underfloor heating systems
  • Monobloc technology enables easy installation and servicing
  • Intuitive control: smart weather compensating controls
  • Domestic hot water: hot, efficient and fast re-heat times with the Ideal heat pump cylinder range



Sales information Sales information 2 Sales information 3 Technical bulletin Operational manual Installation manual

For price, please select a model below

Clear
SKU: N/A Category: Brand:

Description

PRODUCT CODEDESCRIPTIONRated Heat Output (kW)Power Supply (Fuse A)DNO StatusDNO Registration Number
MCS
Approved?		Water Connection Size
Air to Water Outdoor UnitA-7/
W35		A2/
W35		A7/
W35		A-7/
W55		A2/
W55		A7/
W55
LOGIC-32-MB-4KWAH750664 Ideal Heating Logic Air Monobloc 4Kw R32 UK4.14.64.03.74.44.0230V (16)Connect & NotifyIDEAL/05903/V1KIWA/00027/024 HP28mm
LOGIC-32-MB-5KWAH750665 Ideal Heating Logic Air Monobloc 5Kw R32 UK3.516.15.04.85.85.0230V (16)Connect & NotifyIDEAL/03234/V1KIWA/00027/023 HP28mm
LOGIC-32-MB-8KWAH750666 Ideal Heating Logic Air Monobloc 8Kw R32 UK8.188.28.07.58.08.0230V (25)Connect & NotifyIDEAL/07823/V1KIWA/00027/021 HP28mm
LOGIC-32-MB-10KWAH750667 Ideal Heating Logic Air Monobloc 10Kw R32 UK9.5310.210.08.59.010.0230V (25)Connect & NotifyIDEAL/09937/V1KIWA/00027/022 HP28mm



Additional information

Models

LOGIC-32-MB-4KW, LOGIC-32-MB-5KW, LOGIC-32-MB-8KW, LOGIC-32-MB-10KW
