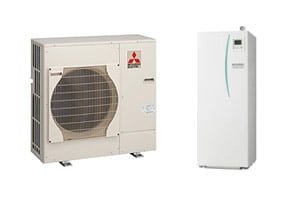

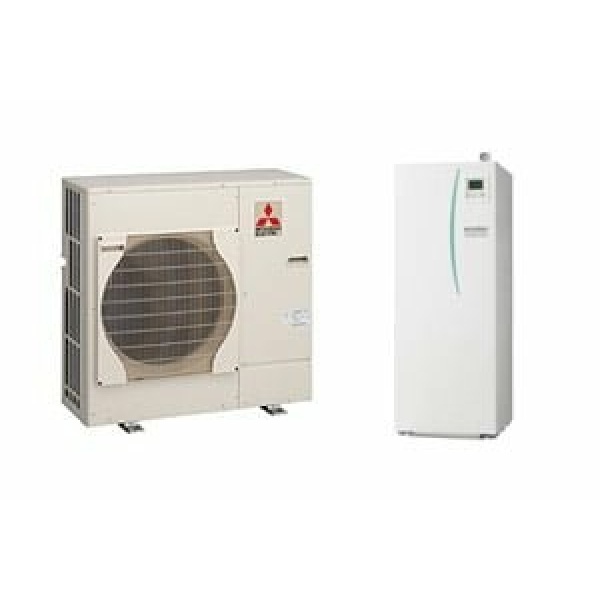

Complete Ecodan Packages c/w Mitsubishi Cylinder (Single Phase)

The packaged cylinder offers a highly adaptable
heating solution for retrofit or new build.
Designed specifically by Mitsubishi Electric to integrate with the
Ecodan monobloc air source heat pump range. The cylinder
provides improved performance and faster heat up times through
the use of plate heat exchanger technology. Fast commissioning
via an SD card and energy monitoring functions are now included.

Please contact Easy Heat Pumps for further pricing information. Due to the complexity of these systems these selections must be approved before supply. Contact 01283 218277 or sales@easyheatpumps.com

Description

Model ReferenceRated Heating Output (Kw)System COP
Electric
Heater Cap.
(kW)

Fuse
Rating
(Amps)

Electrical
Supply
Outdoor Unit CodeHot Water
Cylinder
A-7/W35
-7°C
A-2/W35
2°C
A-7/W35
7°C
A-7/W35
-7°C
A-2/W35
2°C
A-7/W35
7°C
PUHZ-W50VHAEHPT20X4.505.005.002.743.144.13N/A16Single
PUHZ-W85VHA2EHPT20X8.008.509.002.573.174.18N/A25Single
PUHZ-HW140VHA2EHPT20X14.0014.0014.002.683.114.25N/A40Single
PUHZ-HW140YHA2EHPT20X14.0014.0014.002.683.114.25N/A16Three

Packaged HydroBox system inclusive of the following:

• Pre-Plumbed Mitsubishi HWC (EHPT20X-MHCW)
PAC-WK01UK-E G3 Kit
• ecodan Condensing Unit
• PAR-W31MAA Controller (inclusive of thermistor, 7 day programmable timer and thermostat control)
• Flow Temperature Controller (new FTC5)
• Flexible Hose Connectors (FCP)
• 18 Litre Unvented Store Expansion Vessel
• Expansion Vessel Hoses
• Control Relief Valve
• Flow Setter Valve (FM)
TF1 Magnetic Filter
• 1 x Pump
• 7 Day Programmable
• 3kW Immersion Heater
• 3 Way Valve
• Filling Loop
• Unvented Inlet Control Group
• 2kW Inline Boost Heater



New FTC5 Features (2014)

• Fossil fuel boiler control
• Multiple unit control
• Integrated immersion control
• Compatible with either Mitsubishi or third party thermostats
• Intelligent flow temperature control (room compensation)
• Reduced pump power
• SD card commissioning
• DHW mode single pump shutdown
• Wi-Fi ready
