Description

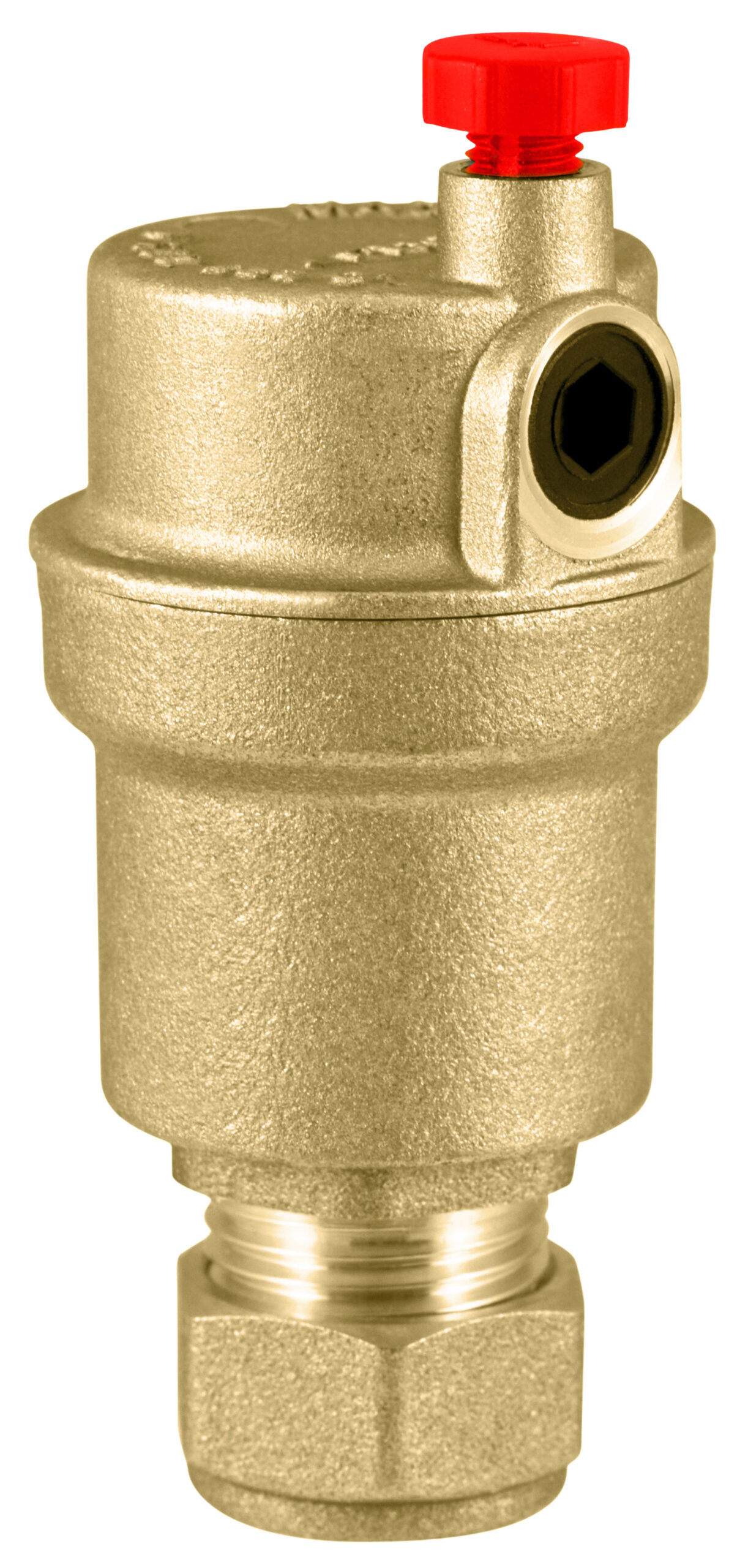

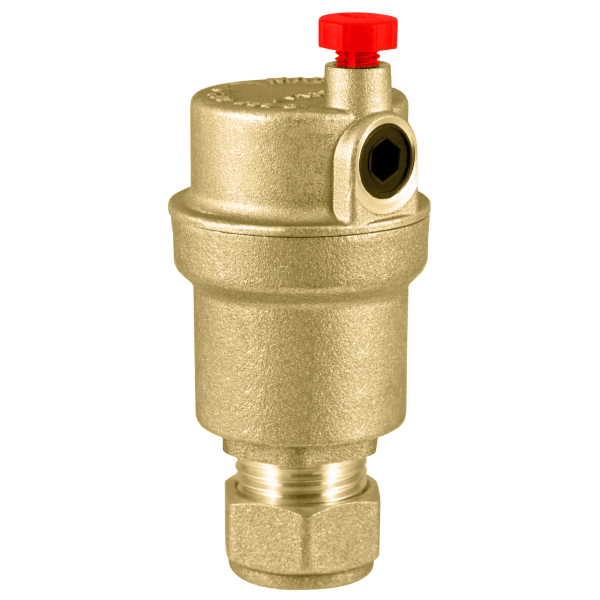

Automatic air vents have been designed for use in heating systems to continually remove air which builds up inside the system without the need to manually vent the system.

The automatic air vent consists of a float connected to a valve. As the air exceeds a given level inside the float chamber the float drops opening the valve and releasing the air trapped within the chamber. When the air is released it is replaced by water which in turn moves the float back into the up position sealing the valve. Available with a quick release isolating valve; a neat and economic component, negating the requirement for an additional isolating ball valve. Inta have a range of high capacity air separators for larger systems which require a higher capacity of venting.

• Automatically discharges air build up
• Improves efficiency
• Available with 15mm, 3/8″ or 1/2″ connection
• Quick release isolation valve available for the 1/2″ connection
• Range of high capacity air separators available

NOTE: – THERE ARE RESTRICTIONS REGARDING THE USE OF AUTOMATIC AIR VENTS ON A R290 SYSTEM – ALWAYS REFER TO THE MANUFACTURERS INSTALLATION INSTRUCTIONS
