Pre-Plumbed “P2” Slimline and Standard Cylinders

EHPT15-30X-UKHDW1S(L)

FTC6 Standard Pre-Plumbed Cylinder

For Ecodan R32 Monobloc Units

A new range of Pre-Plumbed cylinders has been introduced and features more readily available components. This new range offers both standard and slimline variants to suit residential heating applications

MELCloud enabled

Sales information Sales information 2 Sales information 3 Technical bulletin Operational manual Installation manual Dimensions Service Manuals

Please contact Easy Heat Pumps for further pricing information. Due to the complexity of these systems these selections must be approved before supply. Contact 01283 218277 or sales@easyheatpumps.com

Category:

Description

Key Installation Benefits

  • Relocated flow and return pipework for more intuitive installation connections
  • Commonly available components (pumps, valves, standard connections) to improve component supply chain flexibility
  • Improved system performance to refine component design
  • Footprint template with each model for easier first fix installation
  • Hinged flow temperature controller to optimise component access

Features and Benefits

  • Unvented plug and play pre-plumbed DHW cylinder will reduce installation time
  • Efficient and rapid heating produces excellent hot water recovery times
  • Premium quality insulation will reduce heat losses and running costs
  • Flexible 2-zone space heating control gives improved comfort and reduced energy use
  • MELCloud enabled allows remote control, monitoring, maintenance and technical support

Key Change Points

  • Pipework: Flow and Return Connections located behind FTC6. Flow left handside, Return right handside.
  • Heat Pump Circuit Pump: Grundfos UPM3L 25-75 – See table below
  • DHW Plate Heat Exchanger hydraulic configuration optimised
  • Magnetic filter: Fernox TF1 Sigma
  • FTC6 Controller: Hinged to allow access to flow sensor
  • Flow Sensor: Compression fitting
  • Low Loss header: Includes drain off valve
  • Diverter Valve: Honeywell V4044C
  • Model codes ending with
    S = Small = 22mm Pipework
  • Model codes ending with
    L = Large = 28mm Pipework
  • Footprint of the PH2 cylinders is different
    from PH1

Technical Data

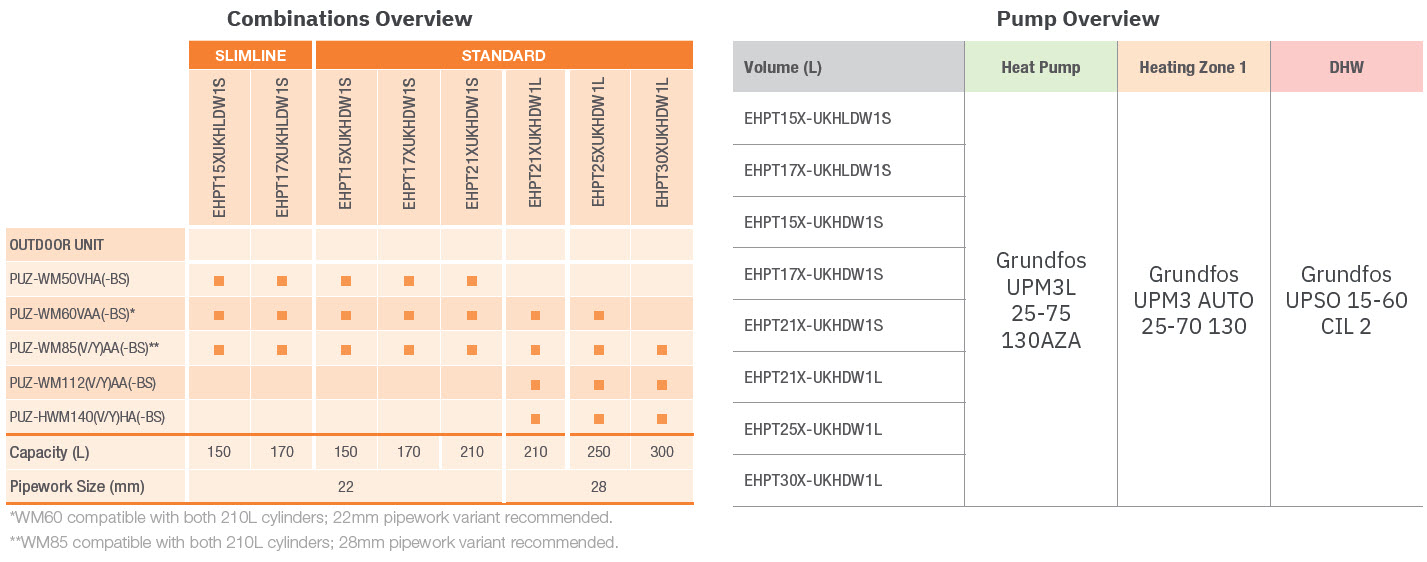

Cylinder Technical DataModel Number
EHPT15X-UKHLDW1SEHPT17X-UKHLDW1SEHPT15X-UKHLDW1SEHPT17X-UKHLDW1SEHPT21X-UKHDW1SEHPT21X-UKHDW1LEHPT25X-UKHDW1LEHPT30X-UKHDW1L
Cylinder TYPESlimlineStandard
Model 50 CompatibilityYesYesYesYesYesNoNoNo
Model 60 CompatibilityYesYesYesYesYesYesYesNo
Model 85 CompatibilityYesYesYesYesYesYesYesYes
Model 112 CompatibilityNoNoNoNoNoYesYesYes
Model 140 CompatibilityNoNoNoNoNoYesYesYes
NOMINAL HOT WATER VOLUME (LITRES)150170150170210210250300
Heat Loss (kWh/24hr)1.401.591.151.231.531.531.802.06
Cylinder MaterialDuplex Stainless Steel
Insulation TypeCFC / HCFC-free flame-retardant expanded Polyurethane
Insulation Thickness50mm60mm
Required Flow Rate (l/min) - Model WM 50 / 60 / 85 / 112 / 140 & HW140 14.3 / 17.2 / 24.4 / 32.1 / 40.1
Minimum Flow Rate (l/min) - Model WM 50 / 60 / 85 / 112 / 140 & HW1407.0 / 9.0 / 12.0 / 16.0 / 2.0
Pump Type - HEAT PUMPGrundfos UPM3L 25 - 75 130AZA
Pump Type - HEAT ZONE 1Grundfos UPM3 AUTO 25 - 70 130
Pump Type - DHWGrundfos UPSO 15-16 CIL 2
DIMENSIONS (mm)
Width676730
Depth654756
Height15161131
Pipework Size (mm)2228
WEIGHT EMPTY / FULL (kg)59 / 20963 / 23355 / 20558 / 22864 / 27468 / 27874 / 32482 / 382
PhaseSingleSingleSingleSingleSingleSingleSingleSingle
Capacity (kW)33333333
Max Running Current (A)1313131313131313
Fuse Rating - MCB Sizes (A)1616161616161616
