Home » Panasonic » Panasonic Cylinders » Panasonic Stainless Steel Unvented Cylinders (EN12897)

Panasonic Stainless Steel Unvented Cylinders (EN12897)

The best heat pump in market needs to be complemented with best efficiency tank. Panasonic energy efficiency A Class Stainless Tank, manufactured by OSO, comes in 2 capacities: 200 and 300L. These 2 models are anode free and do not require any maintenance.

Panasonic DHW Cylinders come complete with the following:

  • PAW-TS2 Cylinder Sensor (complete with Cylinder)
  • G3 Compliance Kit (Compact Inlet Control 3.0/8 Bar, 15 x 22mm Slimline Tundish, 18l Potable Expansion Vessel and bracket, Accessory Kit containing Drain Cock, Hose and Tee Piece
  • 2 Year Warranty as standard

Note that the cylinder does not come complete with a 3-Way Valve. This will need to be of field supply and will need to be optimised for Heat Pumps.

Technical bulletin Installation manual

For price, please select a model below

Clear
SKU: Panasonic Stainless Steel Unvented Cylinders Categories: Panasonic, Panasonic Cylinders
  • Product Information
  • Additional information

Description

Model Reference
Water
Volume
(Litres)

Max
Water
Temp. (C )
Dimension
Exchange
Surface (m2)

Electric
Heater (kW)

Fuse
(Amps)
Energy loss
at 65c
(kWh/24h)
Part NumberHeight (mm)Diameter (mm)Weight (kG)
PAW-TD20C1E5-UK194751270595471.801.5131.01
PAW-TD30C1E5-UK284751750595571.801.5131.10

Aquarea Cylinders for Panasonic Heat Pump applications. Come complete with PAW-TS2 20m sensor and G3 Kit.

Product Images

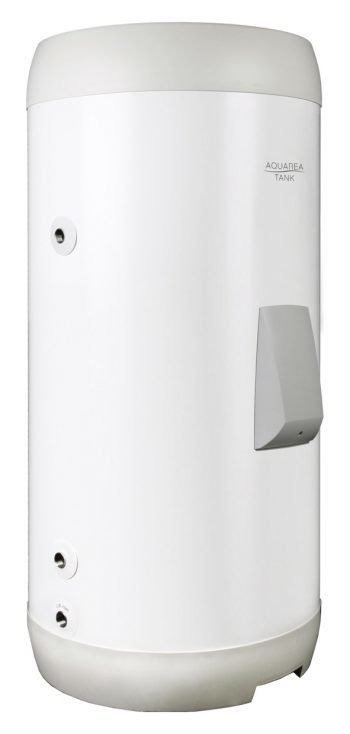

PAW-TD20C1E5-UK

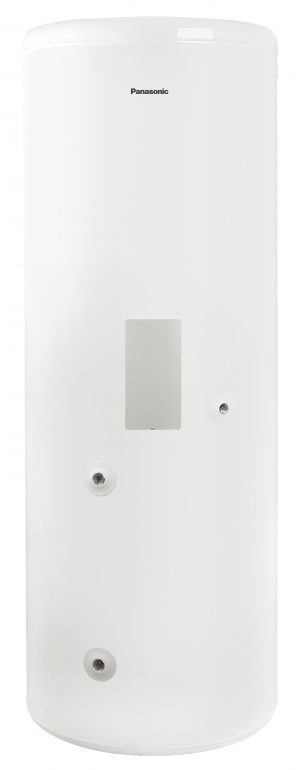

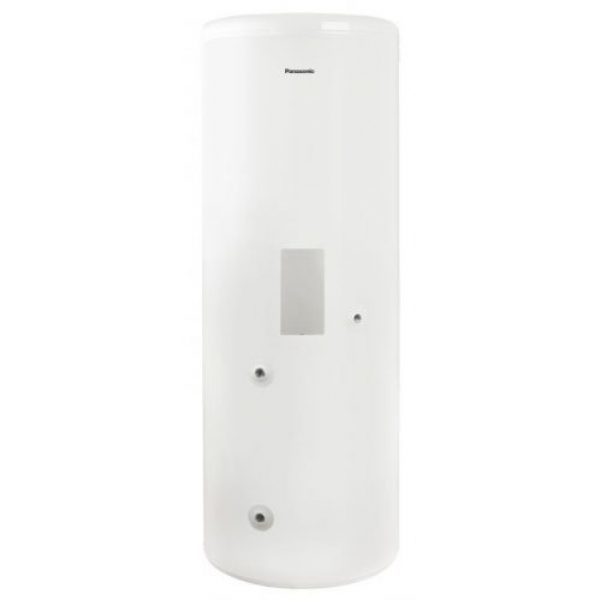

PAW-TD30C1E5-UK

Additional information

Weight N/A
Dimensions N/A
Models

KIT-G3TD20C1E5-UK, KIT-G3TD30C1E5-UK
