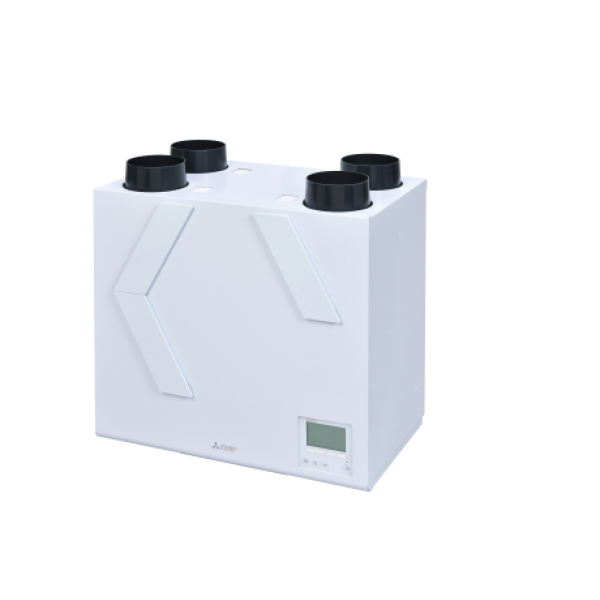

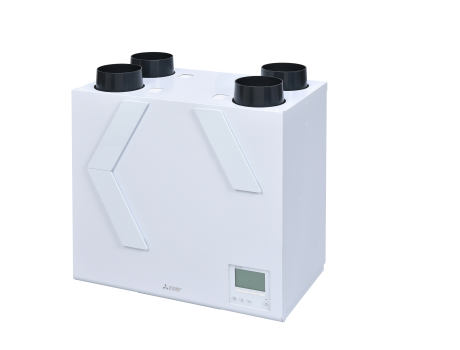

Mitsubishi Electric VL-CZPVU-R/L-E Residential Lossnay Unit

The Mitsubishi Electric residential Lossnay range of Mechanical Ventilation with Heat Recovery (MVHR) units create an environment of constant clean and healthy air at home.

These systems are designed to continuously extract from bathrooms, kitchens, toilets, and utility rooms where air can become polluted with high humidity, fumes, and chemicals on a regular basis.

For price, please select a model below

Clear
SKU: VL-CZPVU-R/L-E Categories: ,

Description

Model ReferenceAir Flow m3/h
High-Med-Low
Air Flow I/s
High-Med-Low

Dimensions (mm)

Config

Electrical
Supply
Indoor Unit
Height

Width

Depth
VL-CZPVU-R-E250-175-125-7569-48-34-20563595386RightSingle
VL-CZPVU-L-E320-224-160-9688-62-34-26623658462LeftSingle

These systems are designed to continuously extract from bathrooms, kitchens, toilets, and utility rooms where air can become polluted with high humidity, fumes, and chemicals on a regular basis. The unit supplies a balanced flow of fresh air from outside to living spaces such as bedrooms and living rooms. Whilst doing this the unit minimises the energy lost by recovering the heat from the extracted air and transferring this to the supplied fresh air.

Designed to be as quiet as possible, these Lossnay models are perfect for residential dwellings where occupants can enjoy all the benefits of ventilation without even knowing the unit is running.

Key Features:

  • Full Bypass Function
  • Third Filter Slot
  • Optional Particulate Matter Filter including NOx Filtration
  • Ultra Quiet Low  Noise levels
  • Built In LCD Controller
  • Automated Boost via Live Switch or VFC
  • Cloud Control

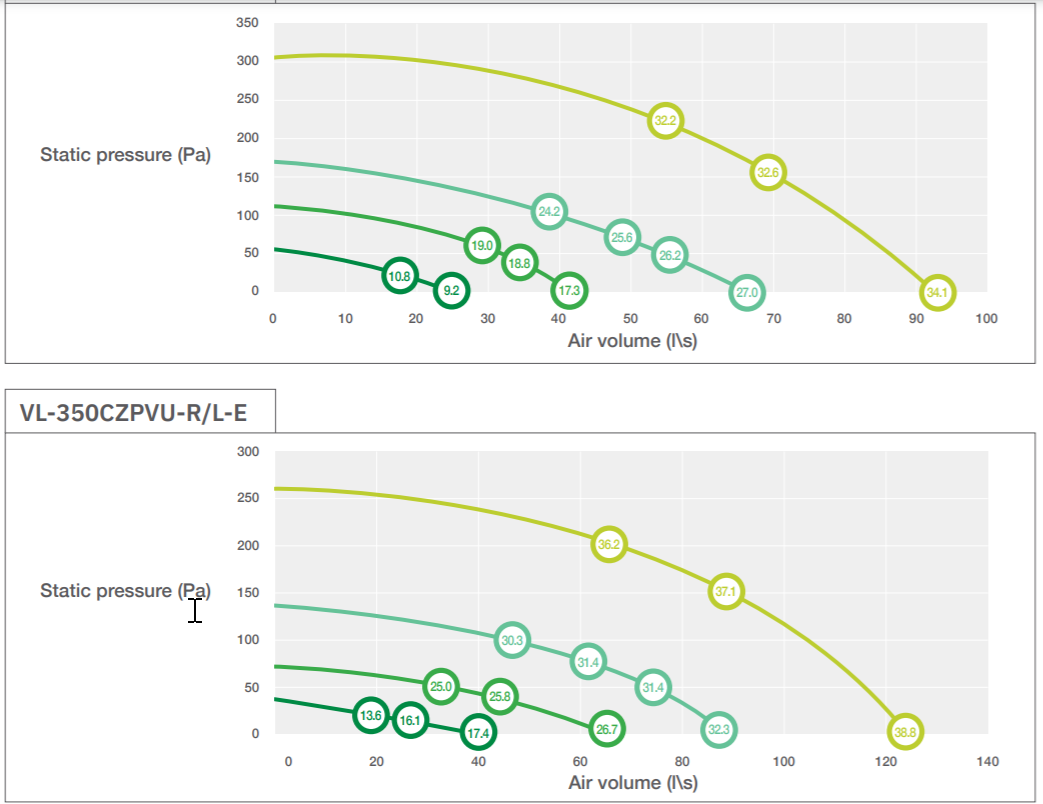

Performance Curves and Breakout Sound Data

Additional information

Models

VL-250CZPVU-L-E, VL-250CZPVU-R-E, VL-350CZPVU-L-E, VL-350CZPVU-R-E
