Description
| Indoor Unit Model | RWH4.0(v)NFE | RWH5.0(v)NFE | RWH6.0(v)NFE | |
| Outdoor Unit Model | RAS-4WH(V)NPE | RAS-5WH(V)NPE | RAS-6WH(v)NPE | |
| Nominal Capacity (max) | kW | 11.00 (15.20) | 14.00 (16.70) | 16.00 (17.80) |
| Water 30/35°C, Ambient 7db/6wb°C | COP | 5 | 4.71 | 4.57 |
| Nominal Capacity (max) | kW | 11.00 (14.50) | 14.00 (17.00) | 16.00 (18.00) |
| Water 40/45°C, Ambient 7db/6wb°C | COP | 3.9 | 3.78 | 3.6 |
| Nominal Capacity (max) | kW | 11.00 (14.50) | 14.00 (17.00) | 16.00 (18.00) |
| Water 47/55°C, Ambient 7db/6wb°C | COP | 3.32 | 3.19 | 3.1 |
| Nominal Capacity (max) | kW | 11.00 (14.50) | 14.00 (17.00) | 16.00 (18.00) |
| Water 30/35°C, Ambient 2db/1wb°C | COP | 2.9 | 3.19 | 3.1 |
| Nominal Capacity (max) | kW | 9.70 (10.60) | 11.50 (12.20) | 12.10 (13.00) |
| Water 30/35°C, Ambient -7db/-8wb°C | COP | 2.74 | 2.65 | 2.57 |
| Nominal Capacity (max) | kW | 11.00 (12.50) | 14.00 (14.50) | 16.00 (16.00) |
| Water 40/45°C, Ambient -7db/-8wb°C | COP | 2.4 | 2.3 | 2.2 |
| Nominal Capacity (max) | kW | 11.00 (12.50) | 14.00 (14.50) | 16.00 (16.00) |
| Water 47/55°C, Ambient -7db/-8wb°C | COP | 2.3 | 2.2 | 2.06 |
| Nominal Capacity (max) | kW | 11.00 (12.50) | 14.00 (14.50) | 16.00 (16.00) |
| Water 47/55°C, Ambient -7db/-8wb°C | COP | 2.1 | 2.05 | 1.95 |
| Refridgeration | R134A | |||
| Water Flow Rate min/max | m3/hr | 1.0 / 2.8 | 1.1 / 3.2 | 1.2 / 3.2 |
| Minimum Water Volume (Defrost) | L | 40 | 50 | |
| Water Connections | Inch | 1 1/4 Female | ||
| Expansion Vessel Size | L | 12.00 | ||
| Pump Type | Yonos PARA RS 15 / 7.5 | |||
| Water Temperature Range | °C | 20 - 80 | ||
| Piping Diameter (liquid/gas) | Inch | 3/8" / 5/8" | ||
| Power Supply | 230V/1Ph/50Hz + 400V/3Ph/50Hz | |||
| Circuit Breaker Size | A | 32 / 16 | ||
| Maximum Operating Current | A | 24.3 / 15.3 | 28.3 / 15.3 | 31.3 / 15.3 |
| Sound Power Level | dB(A) | 57.00 | 58.00 | |
| Dimensions (H x W x D) Including Connections | mm | 800 x 600 x 623 | ||
| Gross Weight | Kg | 146 / 149 | 149 / 152 | |
| Outdoor unit Model | RAS 4 WH(V)NP | RAS 5WH(V)NP | RAS 6WH(V)NP | |
| Refridgerant | R410A | |||
| Minimum Piping Length | m | 5 | ||
| Maximum Chargeless Piping Length | m | 15 | ||
| Piping Diameter (liquis/gas) | Inch | 3/8" / 5/8" | 1/4" / 1/2" | |
| Maximum Piping Length | m | 75 | ||
| Additional Refrigerant Charge | g (per metre) | 60 | ||
| Power Supply | 230V/1Ph/50Hz + 400V/3Ph/50Hz | |||
| Circuit Breaker Size ( Single / Three Phase) | A | 32 / 16 | ||
| Maximum Operating Current | A | 30.5 / 14 | 30.5/ 16 | |
| Sound Power Level @ 7/35 * | dB(A) | 63 | 64 | 65 |
| Dimentions (H x W x D) | mm | 1380 x 950 x 370 | ||
| Gross Weight | KG | 116 | ||
| Compressor Type | mm | Scroll DC Inverter Driven | ||
| * Sound power level in accordance to the standard EN 12102 at conditions specified in EN 14511 performance test | ||||
Features and Benefits:
- Domestic hot water as well as heating – ideal boiler replacement technology
- Two heating circuits
- Capacities: 11kW, 14kW and 16kW
- Easy to install, operate and service
- Hot water recovery time same as a DHW boiler
- Smart Cascade system for outstanding seasonal energy efficiency
- Weather compensation control
- Generate water up to 80°C
- DHW legionella protection program
- One of the best COP’s on the market up to 5.00
- ErP energy efficiency class of up to A+++
- Remote Controller PC-ARFHE (Includes; weekly timer, holiday mode, smart function and a favourite button)
- Wireless Remote Thermostat ATW-RTU-05 (Control remotely via smartphone app)

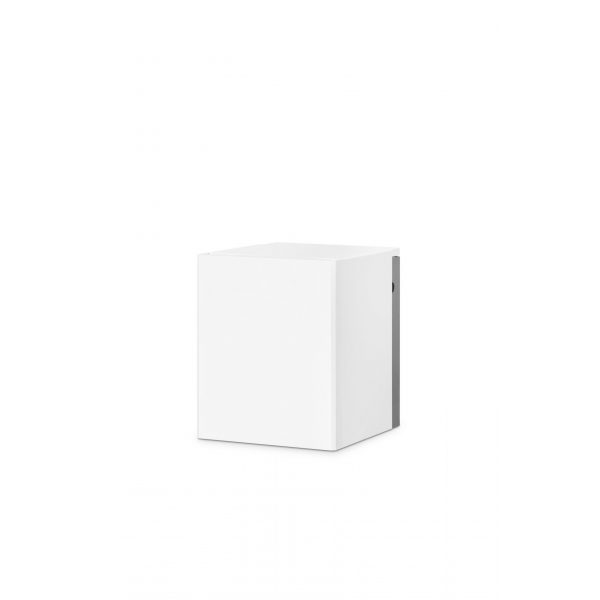

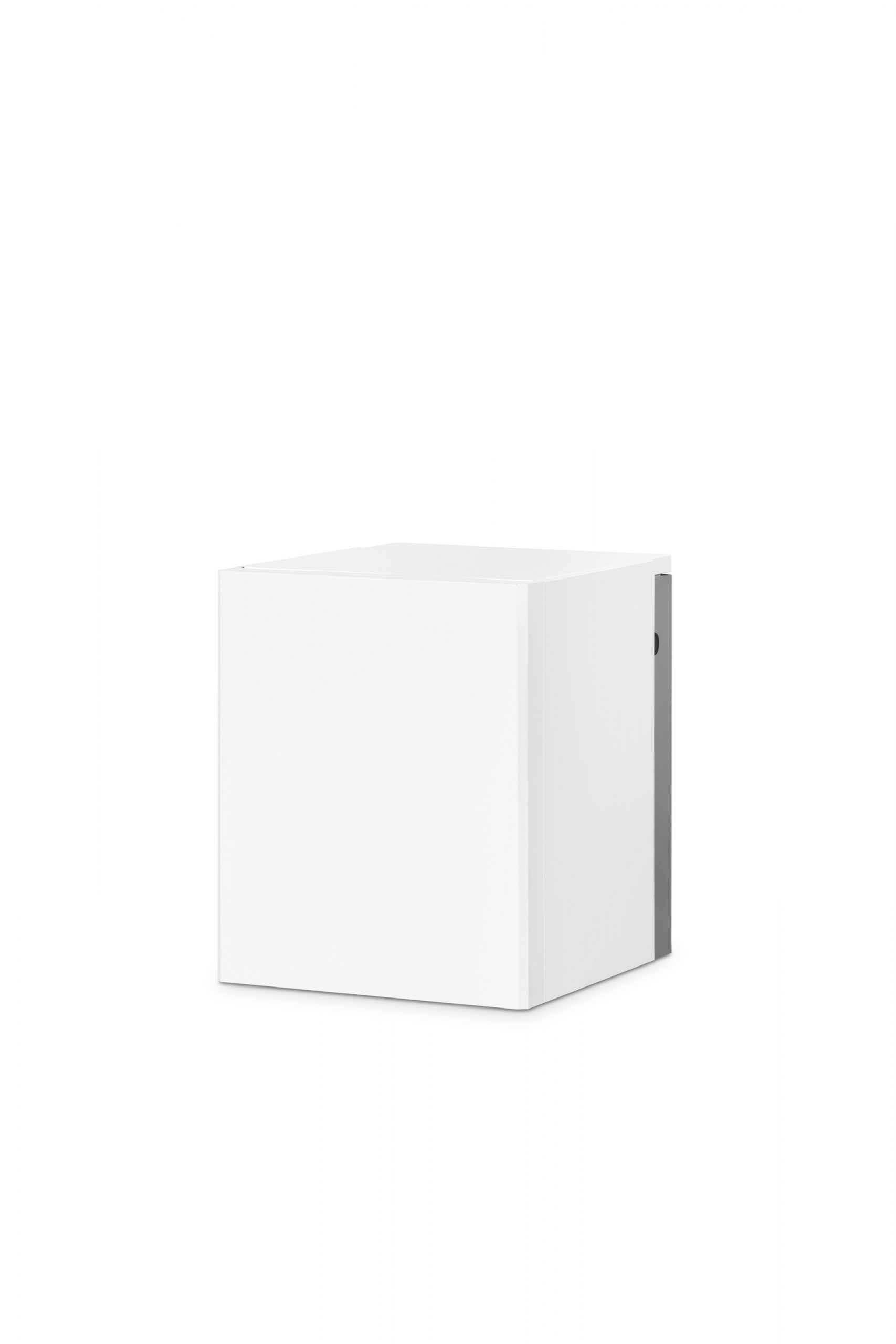

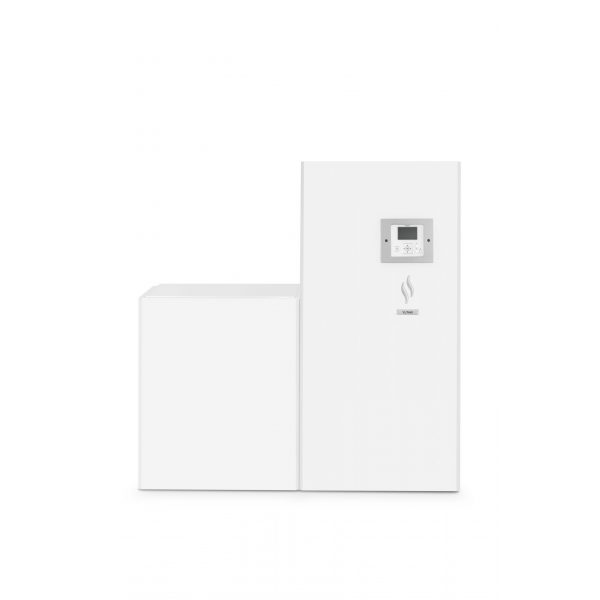

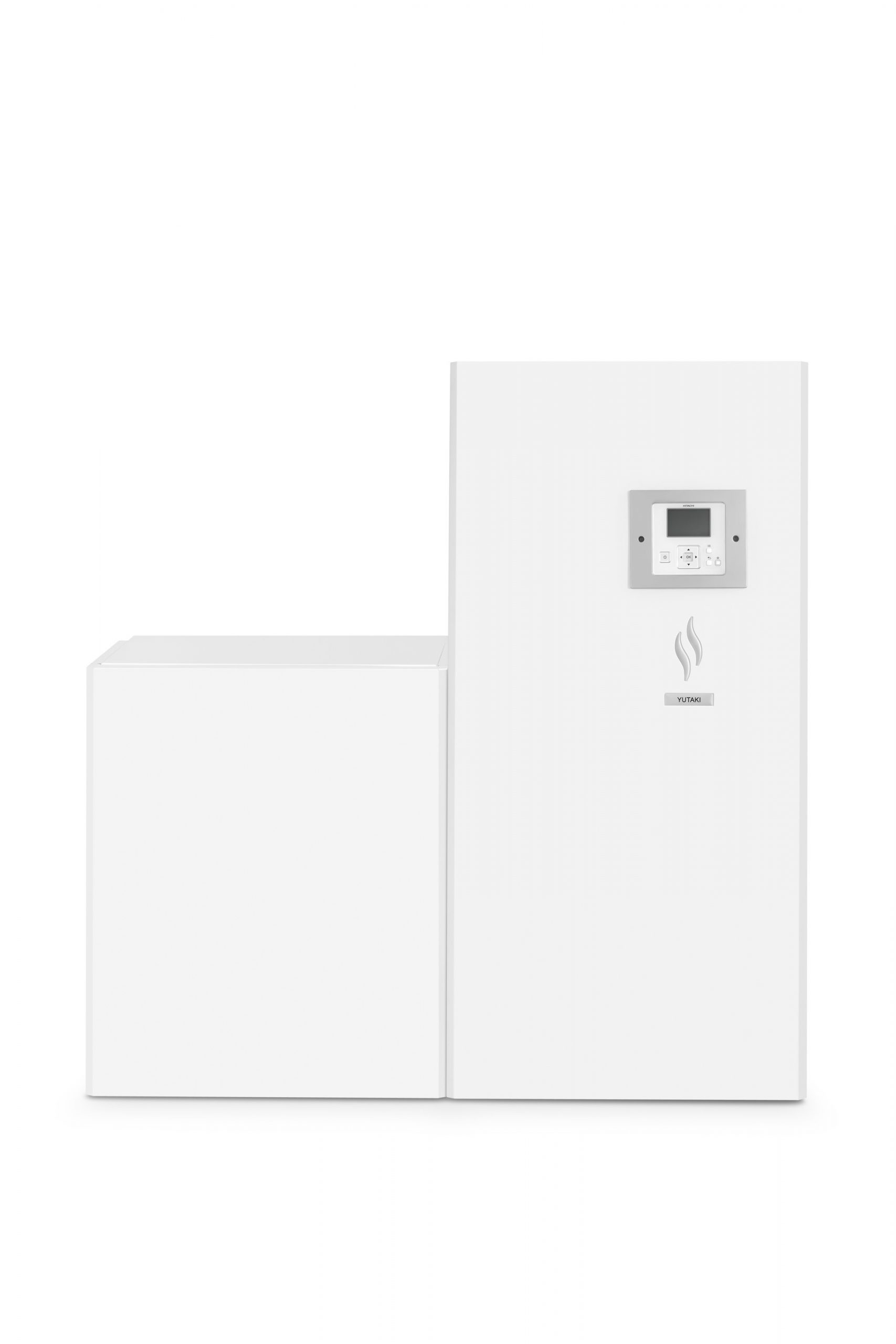

- Optional domestic hot water tank and buffer tanks
- Available from 11 to 16 kW, single and three phase models available
Advanced Technical Data
| Outdoor Unit Model | RASM-3VNE | RASM-4(V)NE | RASM-5(V)NE | RASM-6(V)NE | |
| Nominal Capacity (max) | kW | 7.50 (11.00) | 11.00 (15.20) | 14.00 (16.70) | 16.00 (17.80) |
| Water 30/35°C, Ambient 7db/6wb°C | COP | 4.55 | 5.00 | 4.71 | 4.57 |
| Nominal Capacity (max) | kW | 7.50 (10.00) | 11.00 (14.10) | 14.00 (15.70) | 16.00 (17.30) |
| Water 40/45°C, Ambient 7db/6wb°C | COP | 3.50 | 3.80 | 3.61 | 3.40 |
| Nominal Capacity (max) | kW | 7.50 (9.20) | 11.00 (13.50) | 14.00 (15.20) | 16.00 (17.00) |
| Water 47/55°C, Ambient 7db/6wb°C | COP | 2.70 | 3.00 | 2.80 | 2.50 |
| Nominal Capacity (max) | kW | 5.50 (8.90) | 9.50 (12.80) | 10.50 (13.90) | 11.10 (15.00) |
| Water 30/35°C, Ambient 2db/1wb°C | COP | 3.53 | 3.70 | 3.55 | 3.41 |
| Nominal Capacity (max) | kW | 5.80 (6.70) | 9.70 (10.60) | 11.50 (12.00) | 12.00 (13.00) |
| Water 30/35°C, Ambient -7db/-8wb°C | COP | 2.57 | 2.74 | 2.65 | 2.57 |
| Nominal Capacity (max) | kW | 6.00 (6.40) | 10.00 (10.00) | 11.00 (11.60) | 11.50 (1250 |
| Water 40/45°C, Ambient -7db/-8wb°C | COP | 2.25 | 2.45 | 2.25 | 2.15 |
| Nominal Capacity (max) | kW | 5.00 (5.50) | 8.70 (9.70) | 9.70 (11.20) | 10.50 (12.00) |
| Water 47/55°C, Ambient -7db/-8wb°C | COP | 1.72 | 1.78 | 1.85 | 1.75 |
| Water Flow Rate min/max | m3/hr | 0.60 / 2.10 | 1.00 / 2.80 | 1.10 / 3.00 | 1.20 / 3.00 |
| Minimum Water Volume (Defrost) | L | 28 | 38 | 46 | 55 |
| Water Connections | Inch | 1 1/4 Female | |||
| Expansion Vessel Size | L | 6 | |||
| Pump Type | YonosPARARS15/7.0 | Yonos PARA RS 15 / 7.5 | |||
| Water Temperature Range | °C | 20 - 55 | 20 - 60 | ||
| Power Supply | 230V/1Ph/50Hz | 230V/1Ph/50Hz + 400C/3PH/50Hz | |||
| Circuit Breaker Size (with DHW tank heater) | A | 32 | 50 / 32 | ||
| Circuit Breaker Size (without DHW tank heater) | A | 20 | 32 / 20 | ||
| Maximum Operating Current (with DHW tank heater) | A | 33 | 45.80 / 30.00 | 45.80 / 39.40 | |
| Maximum Operating Current (without DHW tank heater) | A | 18 | 30.8 | ||
| Sound Power Level @7/35 * | dB(A) | 61 | 63 | 64 | 65 |
| Dimensions (H x W x D) Including Connections | mm | 800 x 1252 x 370 | 1380 x 1252 x 370 | ||
| Gross Weight | Kg | 115 | 135 | 140 | 144 |
