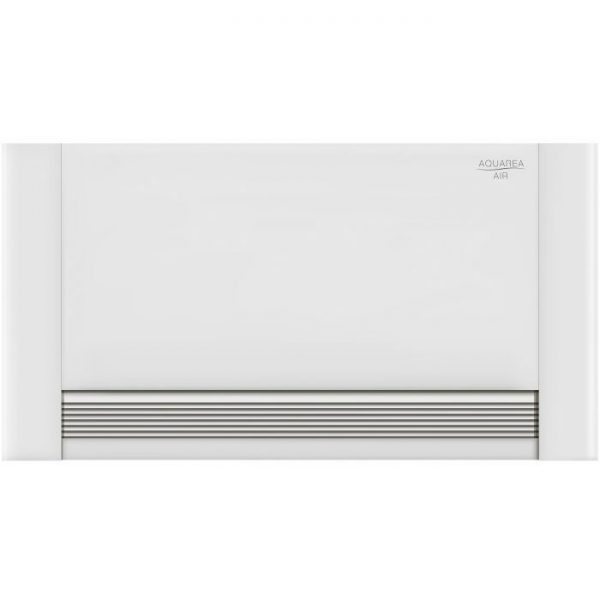

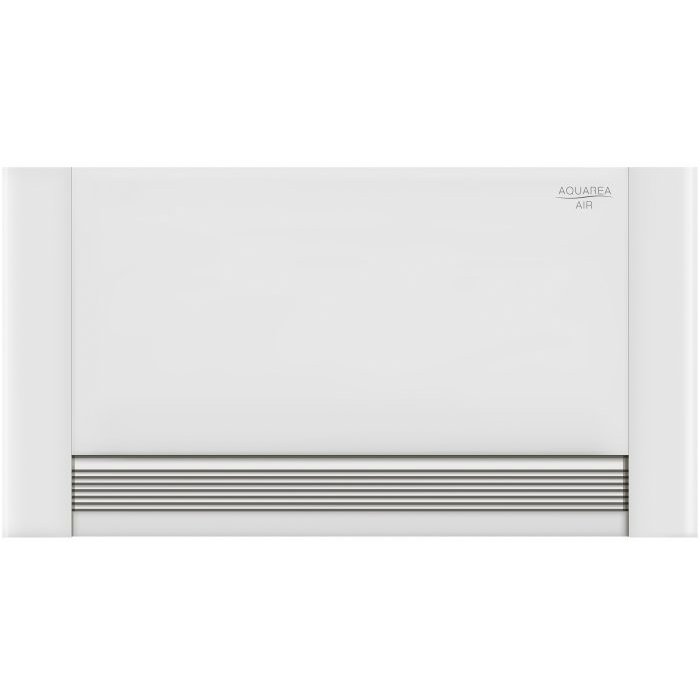

Panasonic Aquarea “A-AIR” Radiators

New line up of Super low temperature radiators for Heat Pump application: Aquarea Air 200/700/900 with radiating effect

The slimline Panasonic Aquarea Air radiators deliver high efficiency climate control. With a depth of just under 13 cm they are at the cutting edge of the market. Blending easily into the home, Aquarea Air’s elegant design and product refinements are clear to see in every detail.
The Aquarea Air’s slimline profile has been achieved thanks to the innovative layout of the ventilation unit and the heat exchanger. The fan is tangential with asymmetric blades and the large surface heat exchanger enables high airflows to be achieved with low pressure loss and low noise levels. Exceptional ventilation efficiency means the motor uses considerably less energy (low wattage). The fan speed is continuously modulated by the temperature controller with proportional integral logic, with undoubted advantages for regulating the temperature and humidity in summer mode.

For price, please select a model below

Clear
SKU: H Generation All In One T-Cap Bi-Bloc Heating and Cooling-1 Categories: ,

Description

Technical focus

  • Only 1 water temperature on the water circuit (35°C)
  • No expansive 2 zone kits
  • No overflow valve (as Aquarea Air has a 3-way valve)
  • Very easy to install
  • COP with water at 35°C is 32% higher than efficiency with water at 45°C! (case MDF06, at +7°C)
  • Front panel heating with radiant effect · High heating capacity (without main fan running)
  • 4 Fan Speeds and Capacities
  • Exclusive Design
  • Extremely compact (only 12.9 cm deep)
  • Cooling and dehumidification functions possible (drain is needed)
  • 3-way valve included (no overflow valve needed on the installation if more than 3 radiators installed)
  • Touch screen thermostat· Automatic vertical airflow control
  • 1 phase



Advanced Technical

PAW-AAIR200

Unit Technical DataModel Number2233607081032
PAW-AAIR-200
Total Heating Capacity (W)138160217470570
Water Flow (kg/h)23.727.537.380.898
Water Pressure Drop (kPa)0.10.20.422.9
Air Flow (m³/hr)282755113162
Air Flow SpeedMain Fan OffSuper MinMinimumMedium Maximum
Max Input Power (w)257913
Sound Pressure Level (dBA)17.618.824.733.239.4
Inlet Water Temp (°C)35
Outlet Water Temp (°C)30
Inlet Air Temp (°C)19
Outlet Air Temp (°C)34.532.638.93230
Height (mm)579
Width (mm)735
Depth (mm)129
Weight (kG)17
3 Way Valves Included?Yes
Touch Screen Thermostat?Yes

PAW-AAIR700

Unit Technical DataModel Number
PAW-AAIR-700
Air Flow SpeedMain Fan OffSuper MinMinimumMedium Maximum
Total Heating Capacity (W)22336070810321188
Water Flow (kg/h)38.461.9121.8177.5204.3
Water Pressure Drop (kPa)0.10.10.30.81
Air Flow (m³/hr)4484155252320
Max Input Power (w)39141822
Sound Pressure Level (dBA)18.419.625.834.140.2
Inlet Water Temp (°C)35
Outlet Water Temp (°C)30
Inlet Air Temp (°C)19
Outlet Air Temp (°C)34.932.433.331.830.6
Height (mm)579
Width (mm)935
Depth (mm)129
Weight (kG)20
3 Way Valves Included?Yes
Touch Screen Thermostat?Yes

PAW-AAIR900

Unit Technical DataModel Number
PAW-AAIR-900
Total Heating Capacity (W)27347588614201703
Water Flow (kg/h)4781.7152.4244.2292.9
Water Pressure Drop (kPa)0.10.20.51.62.2
Air Flow (m³/hr)54110248367461
Air Flow SpeedMain Fan OffSuper MinMinimumMedium Maximum
Max Input Power (w)311162024
Sound Pressure Level (dBA)18.422.326.234.442.2
Inlet Water Temp (°C)35
Outlet Water Temp (°C)30
Inlet Air Temp (°C)19
Outlet Air Temp (°C)34.832.530.231.130.6
Height (mm)579
Width (mm)1135
Depth (mm)129
Weight (kG)17
3 Way Valves Included?Yes
Touch Screen Thermostat?Yes

Notes

Additional information

Models

PAW-AAIR200, PAW-AAIR700, PAW-AAIR900
