4.0kW Ecodan CO2 Monobloc Package with Thermal Store

The packaged hydrobox offers a highly adaptable heating solution for retrofit or new build.
Designed specifically by Mitsubishi Electric to integrate with the Ecodan monobloc air source heat pump range and a third party cylinder, the hydrobox provides hydraulic components with an advanced simplified graphical user interface and controls. Fast commissioning via an SD card and energy monitoring functions
are now included.

Clear
SKU: 4.0kW Ecodan CO2 Monobloc Package with Thermal Store Category:

Description

The Ecodan QUHZ-W40VA is the ideal solution for new build homes
where strict building regulations drive down the space heating
demand, making the production of hot water the dominant load.
The Ecodan QUHZ operates with a market leading low noise output
and built in energy monitoring as standard. The thermal store has
been specifically designed to work with this system, giving high
hot water output without the need to pasteurise the water.

Application Examples

  • New Build UK homes
  • Cafes and Restaurants
  • Dental / Doctor’s Surgeries
Model ReferenceQUHZ-W40VA
Erp Rating.A+


HEAT PUMP COMBINATION
HEATER - 55ºC
ɳs117%
SCOP2.9
HEAT PUMP COMBINATION
HEATER - Large Profile*1
Erp RatingA
ɳs129%
COP3.00
HEATING*2
(A-3/W55)
Capacity (kW)
4.32
Power Input (kW)2.18
COP1.98
OPERATING AMBIENT TEMPERATURE (°C DB)-15 ~ +35°C
SOUND PRESSURE LEVEL AT 1M (dBA)43
SOUND POWER LEVEL (dBA)53
WATER DATAPipework Size (mm)15
Flow Rate (l/min)3 to 8
DISTANCE BETWEEN OUTDOOR
UNIT AND THERMAL STORE
(M) DIMENSIONS (mm)
Height Difference5
Piping Length15
DIMENSIONSWidth809+70
Depth300+20
Height715
Weight (kg)57
Electrical Data Power from Indoor
Model ReferenceEHPT20Q-VM2EA
Nom. Water Store VolumeLitres200
Water Temp. RangeDHW Mode (°C)40-70°C
Space Heating Mode (°C)25-60°C
Mechanical ZonesDHW and 1 Heating Zone (2 Zone
capability with 3rd party 2-port valves)
Operating Ambient Temp. (°C DB)0 ~ +35°C (RH<80%)
Sound Pressure(dBA)30
Sound Power(dBA)40
Standing Heat Loss (kWh/24hours)1.63
Water DataPrimary PumpGrundfos Solar PML 25-145 180
Sanitary Hot Water PumpGrundfos Solar PML 25-145 180
Connection Size (mm) Heating / DHW22 / 22
Primary Expansion Vessel (Litres)18
Charge Pressure (MPa (Bar))0.0 (1)
Water Safety DevicesPressure relief valve (Mpa (Bar))0.3 (3) - 2 No. devices
Flow sensor (supplied)Min. flow 1.3 L/min
Manual reset thermostat85°C
Width(mm)595
Depth(mm)680
Height(mm)1600
Weight Empty/Full(kG)77 / 283
Electrical Supplyv/Hz220-240v, 50Hz
Fuse Rating(A)20
Max. Running Current(A)15



Packaged Thermal Store system inclusive of the following:

  • 200L Thermal Cylinder Store EHPT20Q-VM2EA

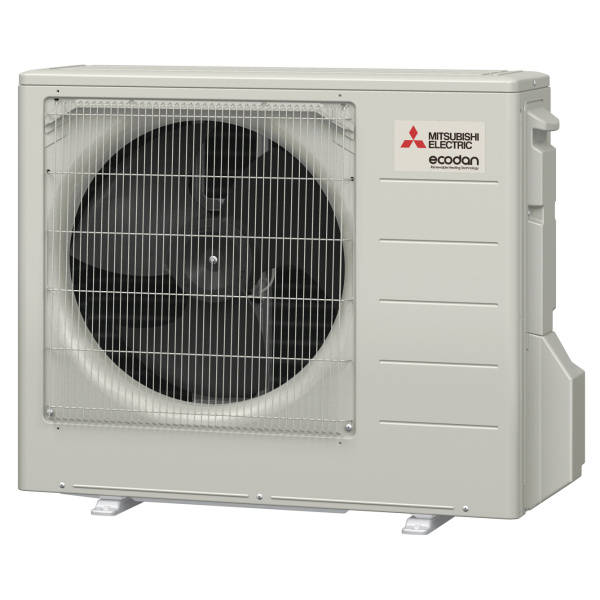

  • 4kW Ecodan Condensing unit QUHZ-W40VA
  • G3 Kit GT-QEVKO2
  • WIFI ready System Controller & WIFI interface MAC-587IF-EH
  • Ecodan QUHZ FLEXIBLE PIPES (ECODAN-QUHZ-FLEX)
  • Thermal store, DHW supply temperature, flow & return water temperature thermistors
  • Flow Sensor x3
  • Primary Expansion Vessel
  • Heating & Thermal Store Circulating Pumps
  • DHW Plate Heat Exchanger
  • Magnetic Filter ACC-MFI-S22
  • Primary System Pressure Gauge
  • Automatic Air-Vent
  • Mounting Feet (SF4060 & SF4023 x 2)
  • Drain Kit

Features and Benefits

  • High efficiency hot water heating performance
  • Class leading low noise operation
  • Energy monitoring as standard
  • No stored water, no risk of legionella
  • Pre-plumbed and wired for faster installation
  • High hot water capacity for larger dwellings
  • Compatible with Mitsubishi Electric wireless room controllers
  • Cascade function for multiple unit control
  • Wi-Fi control available
  • Operates with outside temperatures as low as -15oC



Optional simplified wireless room thermostat (PAR-WT50-E) & Wireless receiver also available (PAR-WR51-E)



Additional information

Model

QUHZ-W40VHA / EHPT20Q-VM2EA
