Description
How it works

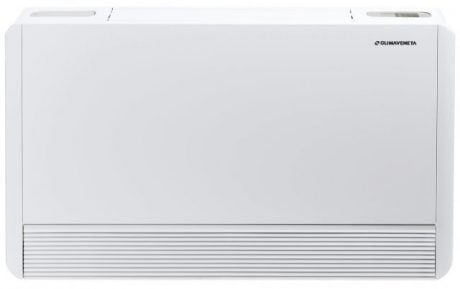

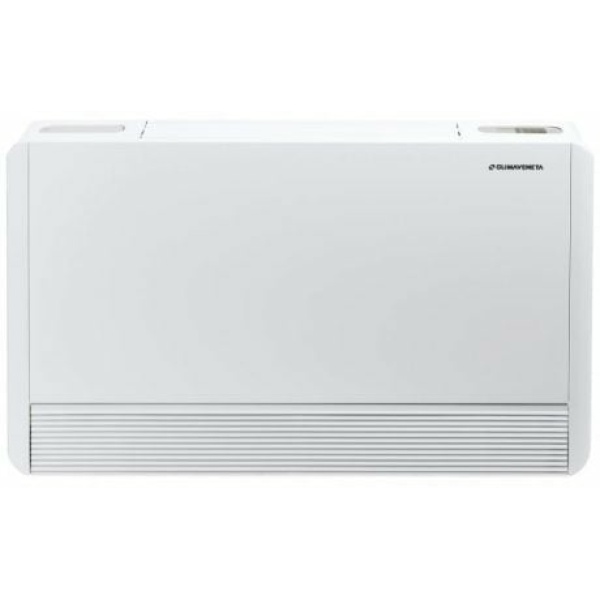

The radiator takes heat from the water pipes and uses a fan to blow warm air round the room, helping distribute heat more evenly and keeping energy consumption to a minimum.
In many cases, the i-Life2 Slim can replace existing radiators with simple connection to pipework. This can allow radiators to be replaced individually or together. Each cabinet just needs in/out water supply from the heating system and a single phase electrical connection, which can be wired in or via a standard 3-pin plug.
Features and Benefits
- Stylish and elegant – at only 13cm deep, and 50% smaller than a conventional radiator* the wall mounted cabinet blends seamlessly into any setting
- Energy saving
- Easy to use – airflow is managed by deflectors at the top of the unit, which open and close automatically ensuring fast even heat distribution
- Advanced finger-tip controls – quick to respond and able to moderate the temperatures in separate rooms
- Low noise – the super quiet fan within the i-Life2 Slim provides perfect comfort in any room, quickly achieving the desired temperature without any fluctuation in noise
- Requires a power supply
- TRV is not required.

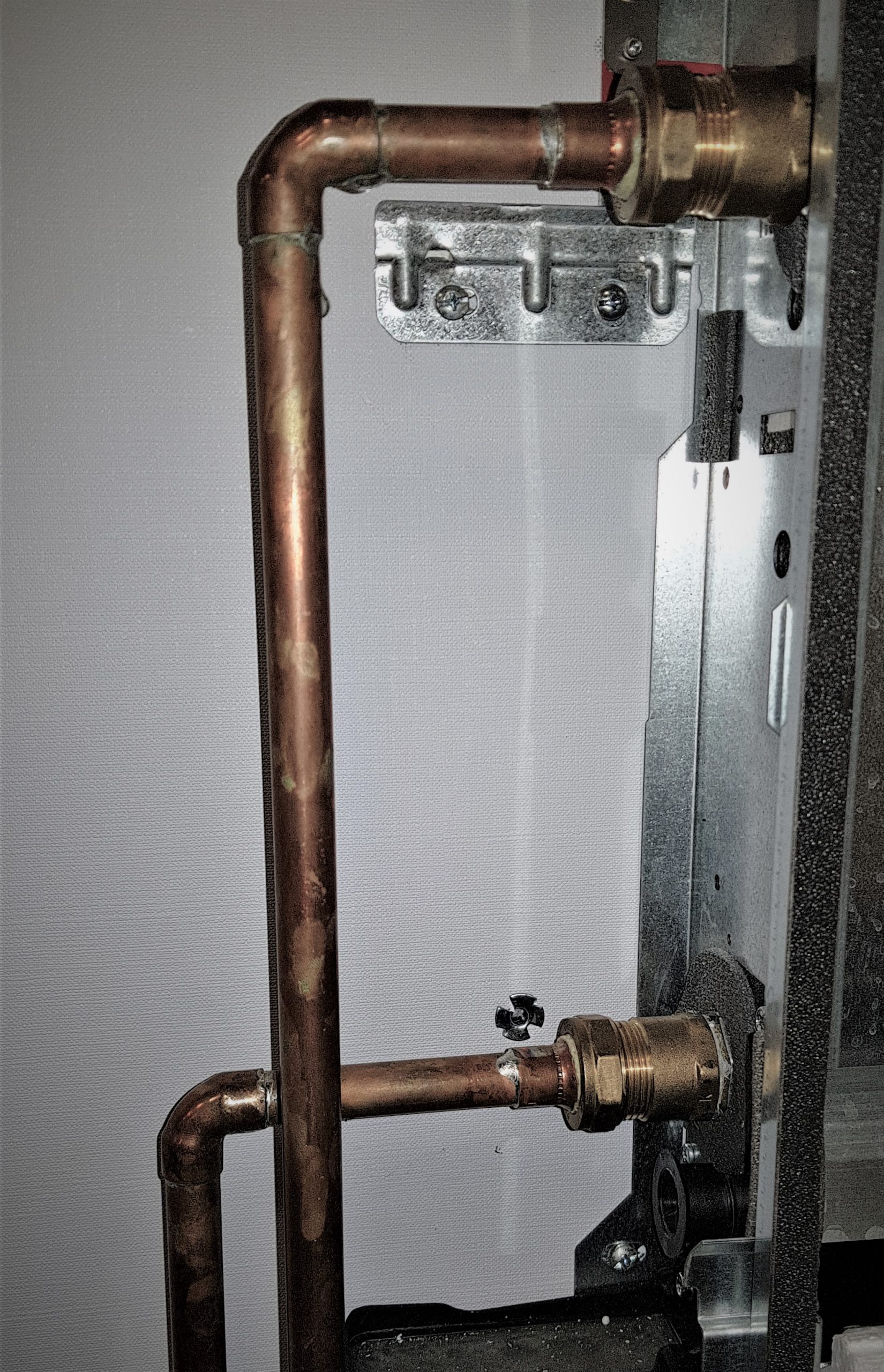

- Unit comes with 3/4” male threads which need to be locally connected to (see image below)
- Field Supply Flow Setter Valve recommended for system installation to ensure best performance and to allow independent operation.
- Can be used for Cooling but this will be outside of MCS requirements
- If used for Cooling a drain connection will be required to remove condensate
Unit Technical Data | Model Number | ||
i-LIFE2 Slim 80 | |||
Air Flow Speed | Max | Med | Min |
Air Flow (m³/hr_ | 125 | 93 | 51 |
Total Heating Capacity (kW) | 0.88 | 0.78 | 0.50 |
Water Flow in Heating (l/s) | 0.04 | 0.04 | 0.02 |
Pressure Drop in Heating (kPa) | 8.0 | 6.0 | 3.0 |
Total Cooling Capacity (kW) | 0.76 | 0.69 | 0.40 |
Sensible Capacity in Cooling (kW) | 0.66 | 0.54 | 0.30 |
Max. Water Flow Cooling(l/s) | 0.04 | 0.03 | 0.02 |
Max. Pressure Drop Cooling (kPa) | 6.0 | 5.0 | 2.0 |
Power Supply (V/Ph/Hz) | 230/1/50 | ||
Sound Pressure Level (dBA) | 41 | 35 | 24 |
Sound Power Level (dBA) | 50 | 44 | 33 |
Max Input Power (w) | 18 | ||
Inlet Water Temp (°C) | 45 | ||
Outlet Water Temp (°C) | 40 | ||
Inlet Air Temp (°C) | 20 | ||
Outlet Air Temp (°C) | 34.5 | 32.6 | 38.9 |
Height (mm) | 579 | ||
Width (mm) | 737 | ||
Depth (mm) | 131 | ||
Weight (kG) | 17 | ||
3 Way Valves Included? | Pending Information | ||
Built-In Thermostat/Control? | Yes |
Unit Technical Data | Model Number | ||
i-LIFE2 Slim 170 | |||
Air Flow Speed | Max | Med | Min |
Air Flow (m³/hr_ | 277 | 221 | 122 |
Total Heating Capacity (kW) | 2.11 | 1.65 | 1.06 |
Water Flow in Heating (l/s) | 0.10 | 0.08 | 0.05 |
Pressure Drop in Heating (kPa) | 8.0 | 5.0 | 2.0 |
Total Cooling Capacity (kW) | 1.75 | 1.39 | 0.81 |
Sensible Capacity in Cooling (kW) | 1.51 | 1.17 | 0.67 |
Max. Water Flow Cooling(l/s) | 0.08 | 0.07 | 0.04 |
Max. Pressure Drop Cooling (kPa) | 5.0 | 3.0 | 1.0 |
Power Supply (V/Ph/Hz) | 230/1/50 | ||
Sound Pressure Level (dBA) | 42 | 36 | 26 |
Sound Power Level (dBA) | 51 | 45 | 35 |
Max Input Power (w) | 27 | ||
Inlet Water Temp (°C) | 45 | ||
Outlet Water Temp (°C) | 40 | ||
Inlet Air Temp (°C) | 20 | ||
Outlet Air Temp (°C) | 34.5 | 32.6 | 38.9 |
Height (mm) | 579 | ||
Width (mm) | 937 | ||
Depth (mm) | 131 | ||
Weight (kG) | 20 | ||
3 Way Valves Included? | Pending Information | ||
Built-In Thermostat/Control? | Yes |
