Panasonic Aquarea H Generation All In One T-Cap Bi-Bloc

Benefits of the T-CAP All in One unit!
Aquarea T-CAP can work in extreme outdoor conditions as low as -28°C and warranty the capacity without back up heating down to -20°C. Ready to work at extreme outdoor conditions the H Generation T-CAP can produce water up to 60°C, expanding its possibilities for retrofit application. On top of All in One Aquarea unique advantages, the quickest installation in the market and easy maintenance including the outstanding inox tank maintenance free.

Sales information

Please contact Easy Heat Pumps for further pricing information. Due to the complexity of these systems these selections must be approved before supply. Contact 01283 218277 or sales@easyheatpumps.com

This product is currently out of stock and unavailable.

SKU: H Generation All In One T-Cap Bi-Bloc Heating and Cooling Categories: ,

Description

Model ReferenceRated Heat Output (kW)System COP
Electric
Heater
Cap (kW)
Fuse (Amps)
Electrical Supply
BiBloc IndoorOutdoor UnitA-7/W35A2 /W35A7/W35A-7/W35A2 /W35A7/W35
WH-ADC1216H6E5-UKWH-UX09HE59.009.009.002.853.594.84632 / 32Single
WH-ADC1216H6E5-UKWH-UX12HE512.0012.0012.002.723.444.74632 / 32Single

Technical focus

  • NEW! Indoor Unit
  • NEW! Touch Controller
  • Works at temperatures as low as -28°C
  • Constant capacity up to -20°C
  • Space saving: 1.800 x 598 x 717 (H x W x D)
  • Reduced installation costs
  • Piping at the bottom of the All in One (easy to install)
  • Reduced installation time and minimised installation errors
  • Easy remote controller to set up
  • Reduced installation spaces
  • Electrical connections at the front
  • Easier installation and maintenance
  • 1 phase
  • New remote controller functions (cooling mode activation possible by software. This activation can only be done by service partner.)

Advanced Technical

Single Phase

Model Reference Single Phase (Power to indoor)
KitKIT‑AXC9HE5KIT‑AXC12HE5
Heating capacity at +7°C (heating water at 35°C)kW9,0012,00
COP at +7°C (heating water at 35°C)W/W4,844,74
Heating capacity at +2°C (heating water at 35°C)kW9,0012,00
COP at +2°C (heating water at 35°C)W/W3,593,44
Heating capacity at -7°C (heating water at 35°C)kW9,0012,00
COP at -7°C (heating water at 35°C)W/W2,852,72
Cooling capacity at 35°C (cooling water at 7/12°C)kW7,0010,00
EER at 35°C (cooling water at 7/12°C)W/W3,172,81
Energy Efficiency Class at 35°C / at 55°C / at 55°C for DHWA++ / A++ / AA++ / A++ / A
System label 35°C / 55°C¹A+++ / A++A+++ / A++
Indoor unitWH-ADC1216H6E5WH-ADC1216H6E5
Sound pressureHeating / CoolingdB(A)33 / 3333 / 33
Dimensions* / Net Weight*H x W x Dmm / kg1.800 x 598 x 717 / 1241.800 x 598 x 717 / 124
Water pipe connectormmR 1 ¼R 1 ¼

A class pump		Number of speedsVariable SpeedVariable Speed
Input power (Min / Max)*W36 / 15236 / 152
Heating water flow (∆T=5 K. 35°C)L/min25,834,4
Capacity of integrated electric heaterkW66
Recommended fuseA30 / 3030 / 30
Recommended cable size, supply 1 & 2mm²3 x 4,0 / 3 x 4,03 x 4,0 / 3 x 4,0
Water volumeL185185
Maximum water temperature°C6565
Material inside tankStainless steelStainless steel

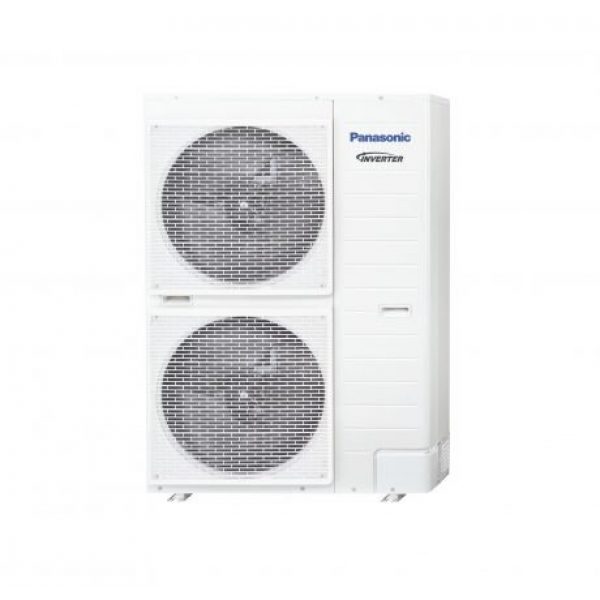

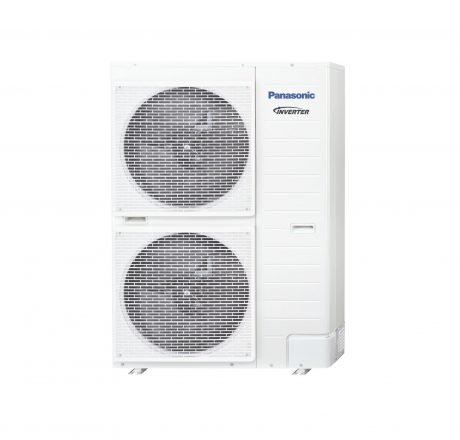

Outdoor UnitWH-UX09HE5WH-UX12HE5
Sound pressureHeating / CoolingdB(A)51 / 4952 / 50
Sound power levelHeating / CoolingdB68 / 6769 / 68
Dimensions / WeightH x W x Dmm / kg1.340 x 900 x 320 / 1011.340 x 900 x 320 / 101
Refrigerant (R410A)kg / TCO2 Eq.2,85 / 5,9512,85 / 5,951
Pipe diameterLiquid / GasInch (mm)3/8 (9,52) / 5/8 (15,88)3/8 (9,52) / 5/8 (15,88)
Pipe length range / Elevation difference (in/out)m3 ~ 30 / 203 ~ 30 / 20
Pipe length for additional gas / Additional gas amountm / g/m10 / 5010 / 50
Operation rangeOutdoor ambient°C-28 ~ +35-28 ~ +35
Water outletHeating / Cooling°C25 ~ 60 / 5 ~ 2025 ~ 60 / 5 ~ 20

Three Phase

Model ReferenceThree Phase (Power to indoor)
KitKIT‑AXC9HE8KIT‑AXC12HE8KIT‑AXC16HE8
Heating capacity at +7°C (heating water at 35°C)kW9,0012,0016,00
COP at +7°C (heating water at 35°C)W/W4,844,744,28
Heating capacity at +2°C (heating water at 35°C)kW9,0012,0016,00
COP at +2°C (heating water at 35°C)W/W3,593,443,10
Heating capacity at -7°C (heating water at 35°C)kW9,0012,0016,00
COP at -7°C (heating water at 35°C)W/W2,852,722,49
Cooling capacity at 35°C (cooling water at 7/12°C)kW7,0010,0012,20
EER at 35°C (cooling water at 7/12°C)W/W3,172,812,57
Energy Efficiency Class at 35°C / at 55°C / at 55°C for DHWA++ / A++ / AA++ / A++ / AA++ / A++ / A
System label 35°C / 55°C¹A+++ / A++A+++ / A++A+++ / A++
Indoor unitWH-ADC0916H9E8WH-ADC0916H9E8WH-ADC0916H9E8
Sound pressureHeating / CoolingdB(A)33 / 3333 / 3333 / 33
Dimensions* / Net Weight*H x W x Dmm / kg1.800 x 598 x 717 / 1261.800 x 598 x 717 / 1261.800 x 598 x 717 / 126
Water pipe connectormmR 1 ¼R 1 ¼R 1 ¼

A class pump		Number of speedsVariable SpeedVariable SpeedVariable Speed
Input power (Min / Max)*W36 / 15236 / 15236 / 152
Heating water flow (∆T=5 K. 35°C)L/min25,834,445,9
Capacity of integrated electric heaterkW999
Recommended fuseA16 / 1616 / 1616 / 16
Recommended cable size, supply 1 & 2mm²5 x 1,5 / 5 x 1,55 x 1,5 / 5 x 1,55 x 1,5 / 5 x 1,5
Water volumeL185185185
Maximum water temperature°C656565
Material inside tankStainless steelStainless steelStainless steel
Outdoor UnitWH-UX09HE8WH-UX12HE8WH-UX16HE8
Sound pressureHeating / CoolingdB(A)51 / 4952 / 5055 / 54
Sound power levelHeating / CoolingdB68 / 6769 / 6872 / 71
Dimensions / WeightH x W x Dmm / kg1.340 x 900 x 320 / 1081.340 x 900 x 320 / 1081.340 x 900 x 320 / 118
Refrigerant (R410A)kg / TCO2 Eq.2,85 / 5,9512,85 / 5,9512,90 / 6,055
Pipe diameterLiquid / GasInch (mm)3/8 (9,52) / 5/8 (15,88)3/8 (9,52) / 5/8 (15,88)3/8 (9,52) / 5/8 (15,88)
Pipe length range / Elevation difference (in/out)m3 ~ 30 / 203 ~ 30 / 203 ~ 30 / 20
Pipe length for additional gas / Additional gas amountm / g/m10 / 5010 / 5010 / 50
Operation rangeOutdoor ambient°C-28 ~ +35-28 ~ +35-28 ~ +35
Water outletHeating / Cooling°C25 ~ 60 / 5 ~ 2025 ~ 60 / 5 ~ 2025 ~ 60 / 5 ~ 20

Accessories

AccessoriesDescription
PAW-ADC-PREKITPre installation kit for piping
PAW-ADC-CV150Decorative magnetic side cover
PAW-BTANK50LBuffer tank 50L
PA-AW-WIFI-1TEWifi interface
PAW-A2W-BIVBivalent control
PAW-FILTERFilter
PAW-A2W-RTWIREDRoom thermostat

Notes

COP classification is at 230V only in accordance with EU directive 2003/32/EC. Sound pressure measured at 1m from the outdoor unit and at 1,5m height. Heating sound pressure measured at +7°C (heating water at 55°C). Performance in agreement with EN14511. Insulated tested under EN12897.

Additional information

Models

WH-ADC1216H6E5-UK, WH-UX09HE5, WH-UX12HE5
Rated Heat Output (kW)

Up to 12kW, Up to 9kW, Up to 6kW, Up to 4kW
