Description
| Model Reference | Rated Heating Output (Kw) | System COP | Electric Heater Cap. (kW) | Fuse Rating (Amps) | Electrical Supply |
|||||
| Outdoor Unit Model | HW Cylinder Model | A-7/W35 -7°C | A-2/W35 2°C | A-7/W35 7°C | A-7/W35 -7°C | A-2/W35 2°C | A-7/W35 7°C |
|||
| PUHZ-W50VHA | HUS210FTC4ST | 4.50 | 5.00 | 5.00 | 2.74 | 3.14 | 4.13 | N/A | 16 | Single |
| PUHZ-W50VHA | HUS250FTC4ST | 4.50 | 5.00 | 5.00 | 2.74 | 3.14 | 4.13 | N/A | 16 | Single |
| PUHZ-W85VHA2 | HUS210FTC4ST | 8.00 | 8.50 | 9.00 | 2.57 | 3.17 | 4.18 | N/A | 25 | Single |
| PUHZ-W85VHA2 | HUS250FTC4ST | 8.00 | 8.50 | 9.00 | 2.57 | 3.17 | 4.18 | N/A | 25 | Single |
| PUHZ-W85VHA2 | HUS300FTC4ST | 8.00 | 8.50 | 9.00 | 2.57 | 3.17 | 4.18 | N/A | 25 | Single |
| PUHZ-HW140VHA2 | HUS210FTC4ST | 14.00 | 14.00 | 14.00 | 2.68 | 3.11 | 4.25 | N/A | 40 | Single |
| PUHZ-HW140VHA2 | HUS250FTC4ST | 14.00 | 14.00 | 14.00 | 2.68 | 3.11 | 4.25 | N/A | 40 | Single |
| PUHZ-HW140VHA2 | HUS300FTC4ST | 14.00 | 14.00 | 14.00 | 2.68 | 3.11 | 4.25 | N/A | 40 | Single |
| PUHZ-HW140YHA2 | HUS210FTC4ST | 14.00 | 14.00 | 14.00 | 2.68 | 3.11 | 4.25 | N/A | 16 | Three |
| PUHZ-HW140YHA2 | HUS250FTC4ST | 14.00 | 14.00 | 14.00 | 2.68 | 3.11 | 4.25 | N/A | 16 | Three |
| PUHZ-HW140YHA2 | HUS300FTC4ST | 14.00 | 14.00 | 14.00 | 2.68 | 3.11 | 4.25 | N/A | 16 | Three |

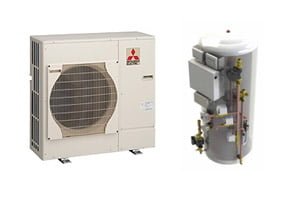

Stainless Steel Cylinder Systems with FTC4
System inclusive of the following
• Pre-Plumbed S/Steel Kingspan HWC with Solar Connection
• ecodan Condensing Unit
• PAR-W21 Controller
• Flow Temperature Controller
• Flexible Hose Connectors (FCP)
• Thermistor to Flow
• Expansion Vessel
• Expansion Vessel Hose
• Danfoss 2 Channel Timer
• Danfoss Cylinder Thermostat
• High limit Thermostat
• Flow Setter Valve
• TF1 Magnetic Filter
• Wall Mounting Kit
• 2 x Pumps
• 7 Day Programmable 3kW Immersion Heater
• CH and DHW Zone Valves
• High Flow rate inlet control set
New FTC4 Features (2014)
• Fossil fuel boiler control
• Multiple unit control
• Integrated immersion control
• Compatible with either Mitsubishi or third party thermostats
• Intelligent flow temperature control (room compensation)
• Reduced pump power
• SD card commissioning
• DHW mode single pump shutdown
• Wi-Fi ready
